Coin-PAT-Adapter
Adapter for using a button cell in a PAT series docking station or potentiostat
Product overview
The Coin-PAT-Adapter enables the operation of conventional 2-electrode coin cells in the PAT system. In contrast to the universal 3E-Coin-PAT-Adapter, this adapter can only accept coin cells with a specific diameter. Therefore different versions are available for button cells with 12, 16, 20, 24 and 30 mm diameter.
In addition, the adapter features automatic cell detection in all EL-CELL potentiostats. When plugged into a PAT battery tester, it is identified by its electronic signature and displayed in EL-Software.

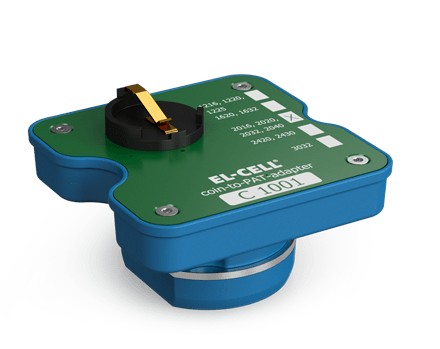

Coin-PAT-Adapter overview
Specifications
| Coin-PAT-Adapter | ||
| Height | 42 mm | |
| Width | 68 mm | |
| Depth | 68 mm | |
| Max. diameter of coin cell | Coin-PAT-Adapter 12 | 12 mm |
| Coin-PAT-Adapter 16 | 16 mm | |
| Coin-PAT-Adapter 20 | 20 mm | |
| Coin-PAT-Adapter 24 | 24 mm | |
| Coin-PAT-Adapter 30 | 30 mm | |
| Max. height of coin cell | 4 mm |
Variants
| Name | Supported coin cell diameter | |
| Coin-PAT-Adapter 12 | 12 mm | |
| Coin-PAT-Adapter 16 | 16 mm | |
| Coin-PAT-Adapter 20 | 20 mm | |
| Coin-PAT-Adapter 24 | 24 mm | |
| Coin-PAT-Adapter 30 | 30 mm |
Related products
3E-Coin-PAT-Adapter
Universal adapter for using 2- and 3-electrode button cells of various sizes in a PAT series docking station or potentiostat
PAT-Tester-x-8
Fully featured potentiostat / galvanostat / impedance analyzer with up to 8 channels for small scale and special purpose testing.
PAT-Tester-i-16
The PAT-Tester-i-16 enables intuitive PAT series testing with the smallest possible footprint.
