Temperature-controlled docking station for PAT series test cells

PAT-Chamber-16

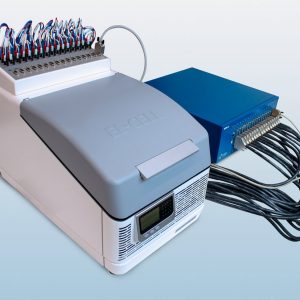

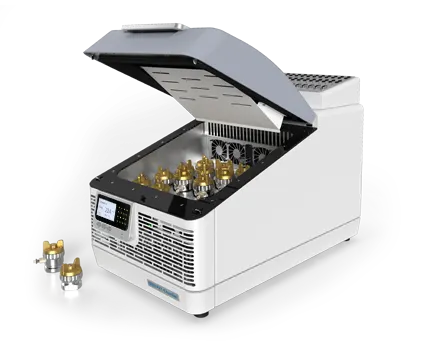

The PAT-Chamber-16 adds even more comfort while conducting battery tests by combining the high throughput testing abilities of the PAT-Stand-16 with a temperature-controlled cell chamber. The integrated Peltier device enables you to test at the exact temperature you need, without using an external heat chamber.
Furthermore, it is our first high throughput docking station that is capable of utilizing both the PAT-Cell and the PAT-Cell-Press for in-situ pressure monitoring of up to 16 test cells at the same time.

The PAT-Chamber-16 is equipped with an anti-condensation system that ensures the smooth operation of the temperature chamber. A built-in condensation trap, as well as ventilation flaps controlled by humidity sensors, effectively prevent the formation of condensation water in the cell chamber, which could otherwise accumulate during heating or cooling operations.

All these features make the PAT-Chamber-16 the optimal choice for performing simultaneous battery tests with PAT-Cells and PAT-Cell-Press in a temperature-controlled environment.

Just like the PAT-Stand-16, the PAT-Chamber-16 comes with a built-in data logger recording full and half cell voltages, cell current, time, global temperature and individual cell pressure.
The PAT-Chamber-16 can be left connected permanently to all of today’s multi-channel potentiostats or battery testers. This way, you save a lot of wiring effort, because it is not necessary to renew the connection between cell and potentiostat for every battery test.

PAT-Chamber-16 overview

Features

Docking station for up to 16 PAT-Cells or PAT-Cell-Press for pressure monitoring

Integrated Peltier-temperature-control with anti-condensing system

Temperature range 10 to 80°C

With data acquisition of cell current, cell voltage, half cell voltages, global temperature, individual cell pressure

Compatible with all of today’s potentiostats and battery testers

Saves wiring effort

Specifications
Width 380 mm
Depth 640 mm
Height approx. 600 mm/375 mm (opened/closed cover)
Height with top-mounted PAT-Connect-16 approx. 600 mm/449 mm (opened/closed cover)
Weight 24 kg (without test cells)
Operating temperature range 10 to 80° C

Manuals
PAT-Connect-16 User Manual
Release 1.4
Date January 2024
Type PDF
Size 1.0 MB
Download
