PAT-Cell-Press

PAT-Cell-Press

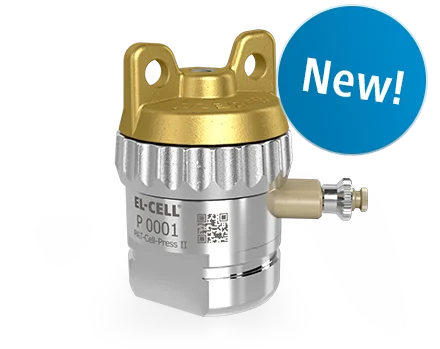

The PAT-Cell-Press is the ideal, leakproof cell for pressure testing.

Our pressure test cell for the PAT series

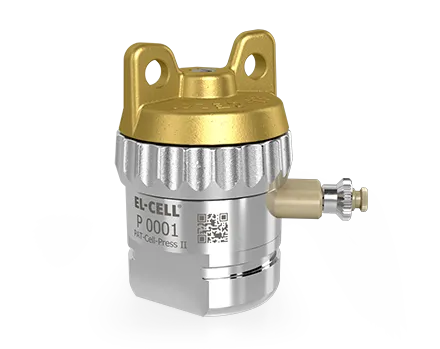

The PAT-Cell-Press is a pressure test cell for measuring gas evolution and drawing gas samples (option). Its advanced design includes a laser welded pressure sensor and glass-to-metal seals. The number of non-permanent seals is reduced to its minimum: a single seal between cell lid and base and a ferrule when the cell is ordered with the optional gas sample port.

In order to ensure best testing results, every PAT-Cell-Press is intensively tested for helium leaks. The PAT-Cell-Press can be operated directly with the PAT-Tester-x and PAT-Tester-i-16 potentiostats. If used with a 3rd party potentiostat, the PAT-Press-Box is required.

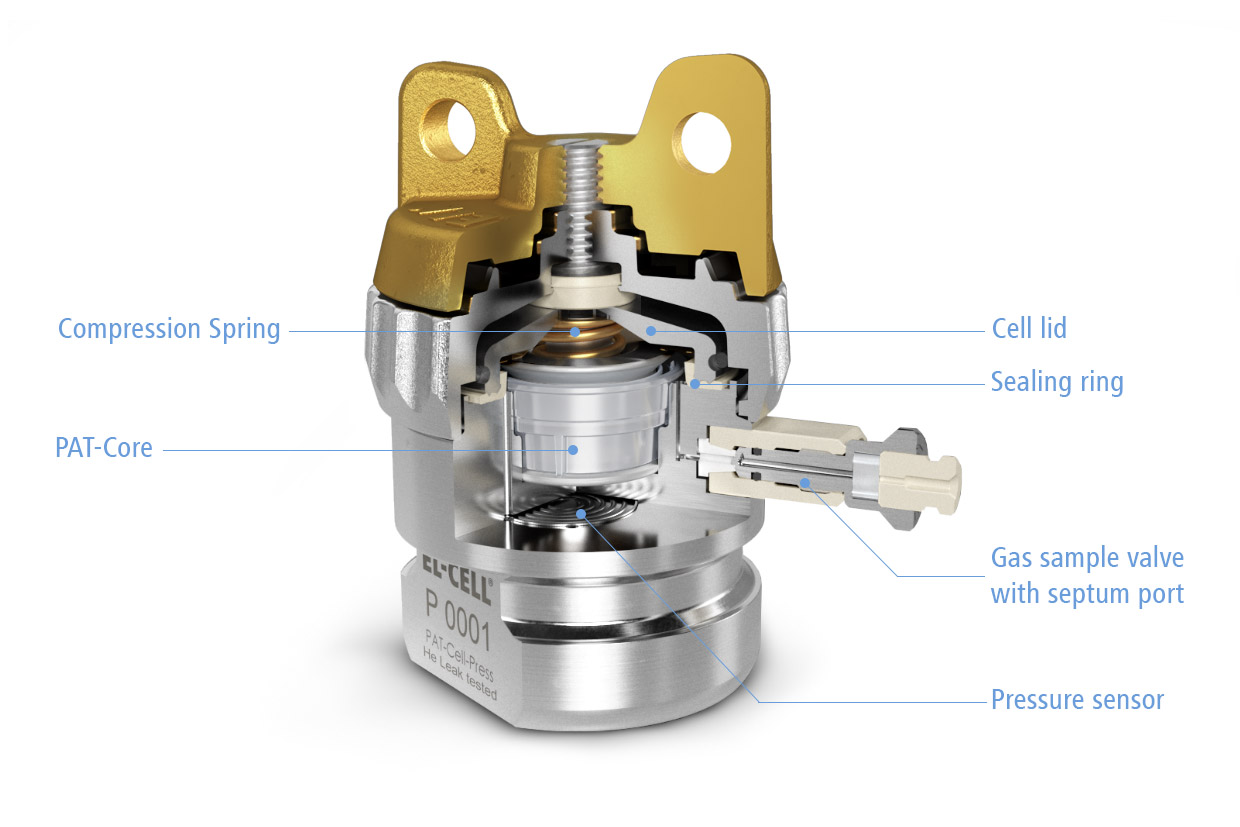

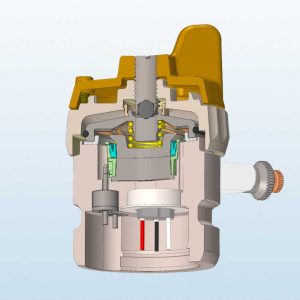

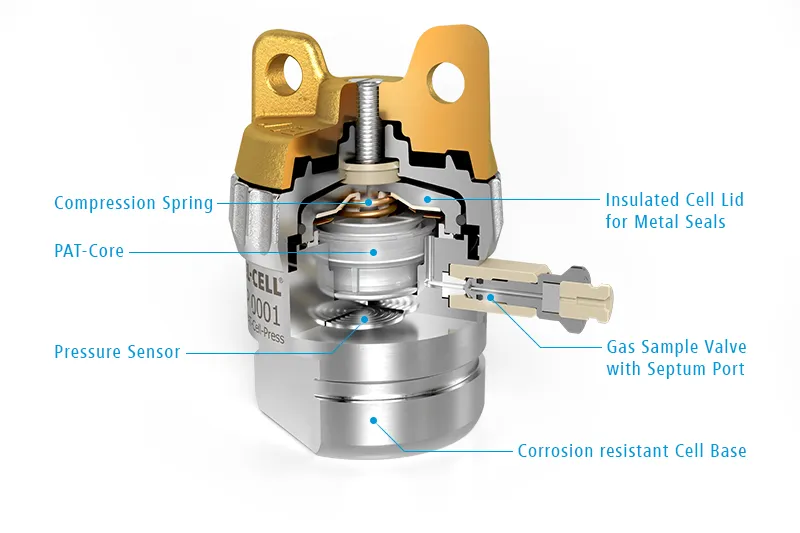

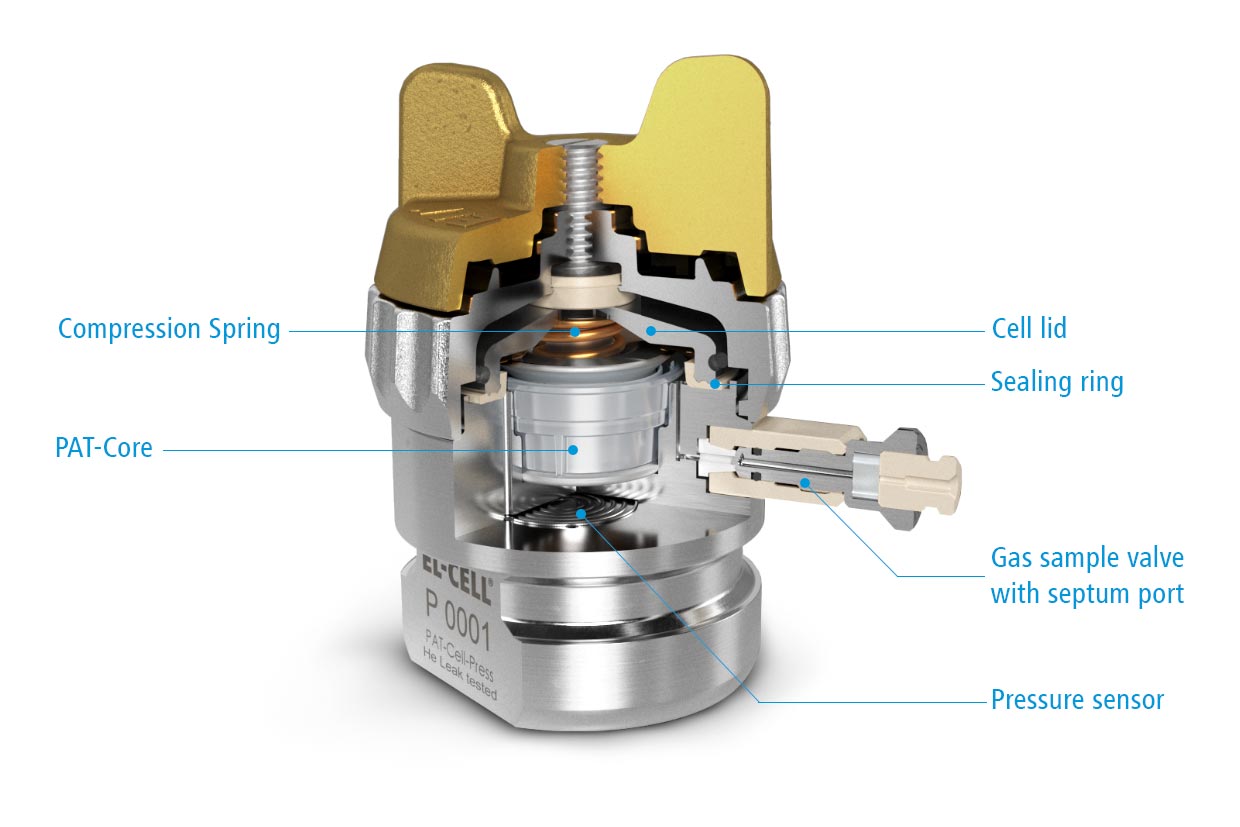

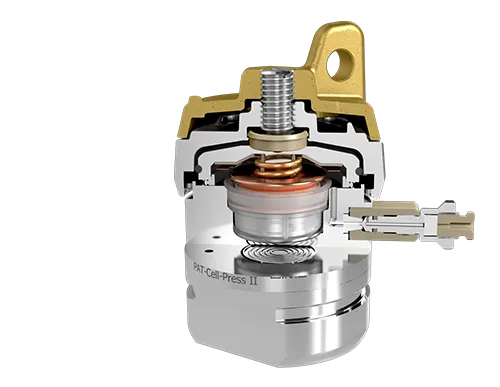

PAT-Cell-Press overview

Features

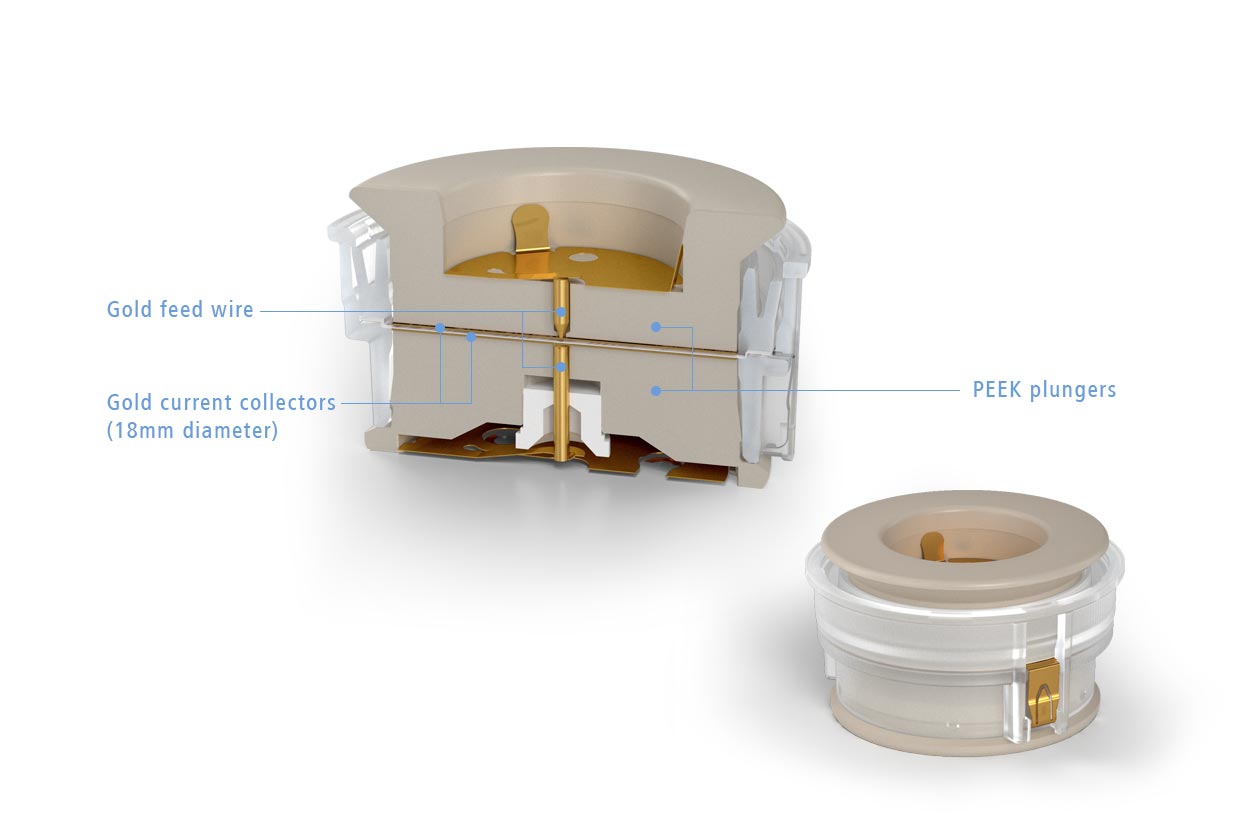

PAT-Core design with or without reference electrode

Laser welded pressure sensor, pressure range of 0 to 3 bar abs. (0.5 to 4.5 V)

Electrode feedthroughs with glass-to-metal seals

Helium leak tested

Corrosion resistant against many aqueous electrolytes (e.g. KOH)

Optional gas sample port (PAT-Cell-Press S)

Optional upper plunger for gas diffusion electrodes

Optional high volume lid for increased inside gas volume

Analog outputs for pressure and temperature for seamless integration with other instruments

Optimzied lid for use with metal seal

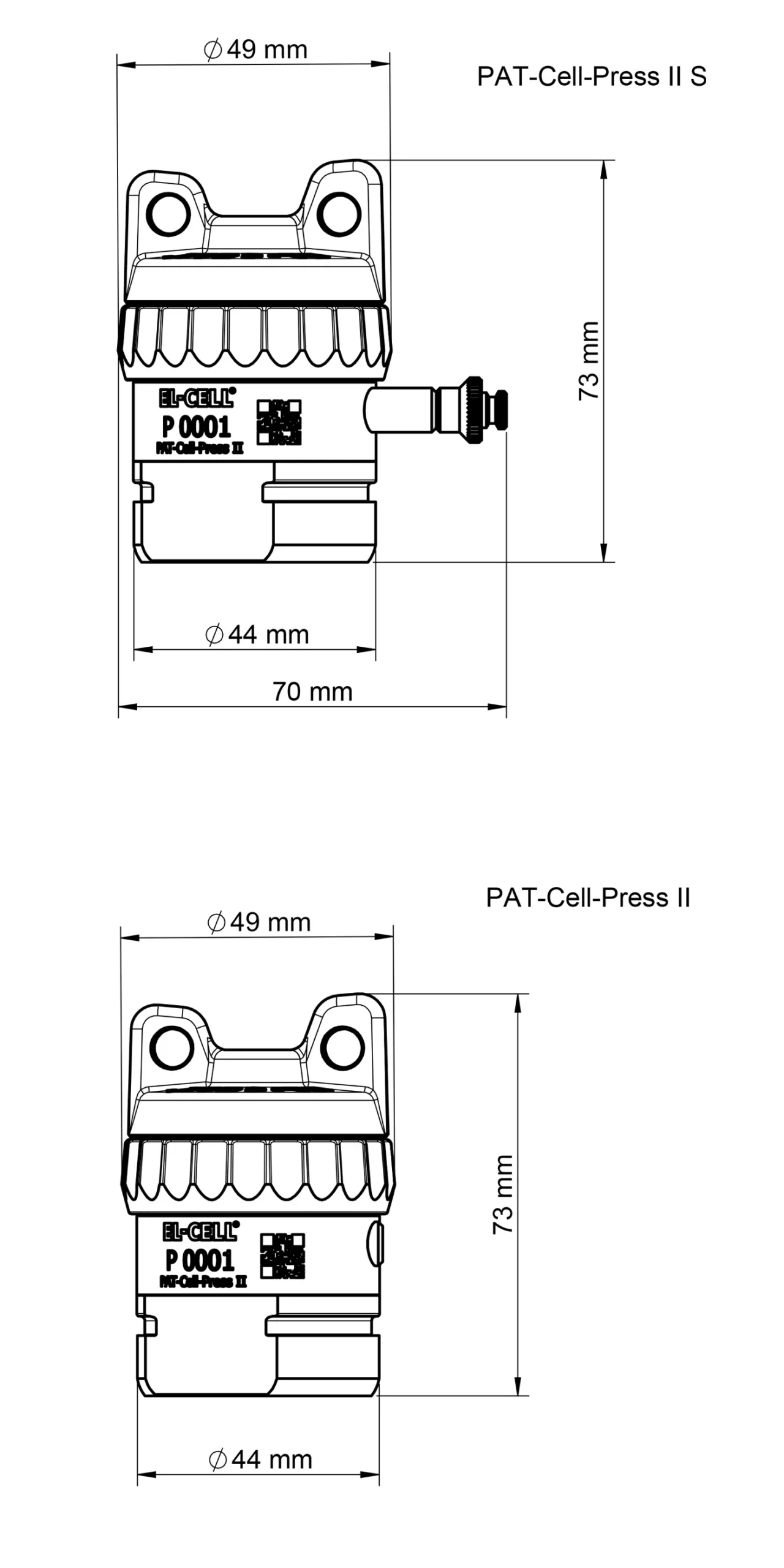

Specifications
Diameter (Lid) 49.5 mm
Diameter (Cell base) 44 mm
Height 73 mm
Width 70 mm (with gas sample port)
Weight 0.5 kg
Separator diameter 21.6 mm
Electrode diameter 18 mm
Operational temperature -20 to +80°C
Pressure sensor:
Range 0 to 3 bar abs.
Accuracy < 5 mbar
Resolution < 0.2 mbar

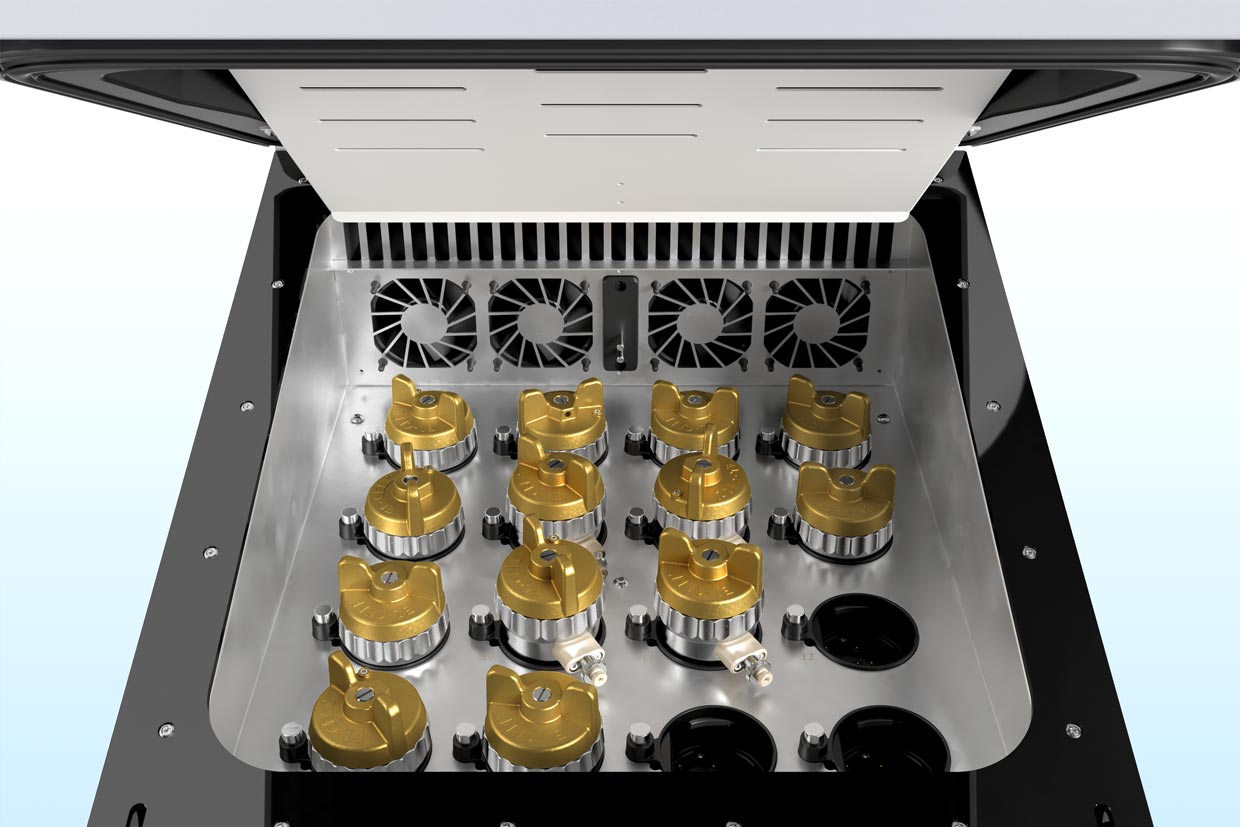

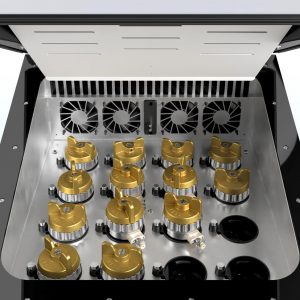

Compatible PAT docking stations

Manuals
Consumables
Item nameUsageMaterialOrder numberWebshop
Upper plunger (Cu)70°C 200°CPlungerSingle-useCopper (Cu, 99.9 (E-CU 58))ECC1-01-0026-APAT-Cell-HTBuy online
Upper plunger (Al)70°C 200°CPlungerSingle-useAluminum (Al, 99.5 (EN-AW-1050))ECC1-01-0026-B PAT-Cell-HTBuy online
Upper plunger (Stainless steel)70°C 200°CPlungerReusableStainless steel 316L (1.4404)ECC1-01-0026-CPAT-Cell-HTBuy online
Upper plunger (Nickel)70°C 200°CPlungerReusableNickel (Ni>99%)ECC1-01-0026-MPAT-Cell-HTBuy online
Upper plunger (PEEK) with upper feed wire (Au) and disc spring (Au)70°C 200°CPlungerReusablePEEK (Plunger)
Gold (Au) (Feed wire and disc spring)
ECC1-01-0065-APAT-Cell-Aqu, PAT-Cell-HTBuy online
Lower plunger (Cu)70°C 200°CPlungerSingle-useCopper (Cu, 99.9 (E-CU 58))ECC1-01-0027-B_x
(x = height number 50 to 800)
PAT-Cell-HTBuy online
Lower plunger (Al)70°C 200°CPlungerSingle-useAluminum (Al, 99.5 (EN-AW-1050))ECC1-01-0027-A_x
(x = height number 50 to 800)
PAT-Cell-HTBuy online
Lower plunger (Nickel)70°C 200°CPlungerReusableNickel (Ni>99%)ECC1-01-0027-M_x
(x = height number 50 to 800)
PAT-Cell-HT
Lower plunger (Stainless steel)70°C 200°CPlungerReusableStainless steel 316L (1.4404)ECC1-01-0027-C_x
(x = height number 50 to 800)
PAT-Cell-HTBuy online
Lower plunger (PEEK) with lower feed wire (Au) and disk spring (Au)70°C 200°CPlungerReusablePEEK (Plunger)
Gold (Au) (Feed wire and disc spring)
ECC1-01-0055-A_xPAT-Cell-HT, PAT-Cell-Aqu
Insulation sleeve PP (Al-Reference, Separator Customized) (10 pcs)AluminumProvided by customer70°CInsulation sleeveSingle-useAluminum (Al) (Reference)
Custom separator
Polypropylene (PP) (Sleeve)
ECC1-00-0420-D/X
Insulation sleeve PP (AC(SS)-Reference ring, Separator GF/A) (10 pcs)Activated carbon on stainless steelBorosilicate glass fiber70°CInsulation sleeveSingle-useActivated carbon on stainless steel (Reference)
Borosilicate glass fiber (Separator)
Polypropylene (PP) (Sleeve)
ECC1-00-0450-M/XSeparator type: Whatman GF/A, 260 µmBuy online
Insulation sleeve PP (AC(SS)-Reference ring, Separator FS-5P) (10 pcs)Activated carbon on stainless steelPP fiber/PE membrane70°CInsulation sleeveSingle-useActivated carbon on stainless steel (Reference)
PP fiber/PE membrane (Separator)
Polypropylene (PP) (Sleeve)
ECC1-00-0450-N/XSeparator type: Freudenberg Viledon FS 2226E + Lydall Solupor 5P09B, 220 µm)
Insulation sleeve PP (Na-Reference, Separator GF/A) (10 pcs)SodiumBorosilicate glass fiber70°CInsulation sleeveSingle-useSodium (Na) (Reference)
Borosilicate glass fiber (Separator)
Polypropylene (PP) (Sleeve)
ECC1-00-0210-U/XSeparator type: Whatman GF/ABuy online
Insulation sleeve PP (Mg-Reference, Separator GF/A) (10 pcs)MagnesiumBorosilicate glass fiber70°CInsulation sleeveSingle-useMagnesium (Mg) (Reference)
Borosilicate glass fiber (Separator)
Polypropylene (PP) (Sleeve)
ECC1-00-0210-H/XSeparator type: Whatman GF/ABuy online
Insulation sleeve PP (Al-Reference, Separator GF/A) (10 pcs)AluminumBorosilicate glass fiber70°CInsulation sleeveSingle-useAluminum (Al) (Reference)
Borosilicate glass fiber (Separator)
Polypropylene (PP) (Sleeve)
ECC1-00-0210-J/XSeparator type: Whatman GF/ABuy online
Insulation sleeve PP (Mg-Reference, Separator Customized) (10 pcs)MagnesiumProvided by customer70°CInsulation sleeveSingle-useMagnesium (Mg) (Reference)
Custom separator
Polypropylene (PP) (Sleeve)
ECC1-00-0420-C/X
Insulation sleeve PP (AC-Reference, Separator Customized) (10 pcs)Activated carbonProvided by customer70°CInsulation sleeveSingle-useActivated carbon (Reference)
Custom separator
Polypropylene (PP) (Sleeve)
ECC1-00-0420-E/X
Insulation sleeve PP (Na-Reference, Separator Customized) (10 pcs)SodiumProvided by customer70°CInsulation sleeveSingle-useSodium (Na) (Reference)
Custom separator
Polypropylene (PP) (Sleeve)
ECC1-00-0420-F/X
Insulation sleeve PP (Na-Reference, Separator FS-5P) (10 pcs)SodiumPP fiber/PE membrane70°CInsulation sleeveSingle-useSodium (Na) (Reference)
PP fiber/PE membrane (Separator)
Polypropylene (PP) (Sleeve)
ECC1-00-0210-X/XSeparator type: Freudenberg Viledon FS 2226E + Lydall Solupor 5P09B)
Insulation sleeve PP (Li-Reference, Separator Customized) (10 pcs)LithiumProvided by customer70°CInsulation sleeveSingle-useLithium (Li) (Reference)
Custom separator
Polypropylene (PP) (Sleeve)
ECC1-00-0420-A/X
Insulation sleeve PP (Li-Reference, Separator GF/A) (10 pcs)LithiumBorosilicate glass fiber70°CInsulation sleeveSingle-useLithium (Li) (Reference)
Borosilicate glass fiber (Separator)
Polypropylene (PP) (Sleeve)
ECC1-00-0210-O/XSeparator type: Whatman GF/ABuy online
Insulation sleeve PP (Li-Reference, Separator FS 3005-25) (10 pcs)LithiumPET fiber, Al2O370°CInsulation sleeveSingle-useLithium (Li) (Reference)
PET fiber, Al2O3 (Separator)
Polypropylene (PP) (Sleeve)
ECC1-00-0210-A/XSeparator type: Freudenberg Viledon FS 3005-25Buy online
Insulation sleeve PP (Li-Reference, Separator FS-5P) (10 pcs)LithiumPP fiber/PE membrane70°CInsulation sleeveSingle-useLithium (Li) (Reference)
PP fiber/PE membrane (Separator)
Polypropylene (PP) (Sleeve)
ECC1-00-0210-V/XSeparator type: Freudenberg Viledon FS 2226E + Lydall Solupor 5P09B)Buy online
Insulation sleeve PP (Separator Customized, if appl. Clamping ring) (10 pcs)noneProvided by customer70°CInsulation sleeveSingle-useCustom reference and separator
Polypropylene (PP) (Sleeve)
ECC1-00-0420-B/X
Insulation sleeve PP (Separator GF/A) (10 pcs)noneBorosilicate glass fiber70°CInsulation sleeveSingle-useCustom reference
Borosilicate glass fiber (Separator)
Polypropylene (PP) (Sleeve)
ECC1-00-0210-P/XSeparator type: Whatman GF/ABuy online
Insulation sleeve PP (Separator FS 3005-25) (10 pcs)nonePET fiber, Al2O370°CInsulation sleeveSingle-useCustom reference
PET fiber, Al2O3 (Separator)
Polypropylene (PP) (Sleeve)
ECC1-00-0210-B/XSeparator type: Freudenberg Viledon FS 3005-25Buy online
Insulation sleeve PP (Separator FS-5P) (10 pcs)nonePP fiber/PE membrane70°CInsulation sleeveSingle-useCustom reference
PP fiber/PE membrane (Separator)
Polypropylene (PP) (Sleeve)
ECC1-00-0210-W/XSeparator type: Freudenberg Viledon FS 2226E + Lydall Solupor 5P09B)Buy online
Plain Insulation sleeve PP (disassembled) (10 pcs)nonenone70°CInsulation sleeveSingle-useCustom reference and separator
Polypropylene (PP) (Sleeve)
ECC1-00-0210-D/XBuy online
Plain Insulation sleeve (PP), Reed contact (Ni on SS), disassembled (10 pcs)nonenone70°CInsulation sleeveSingle-useWithout reference ring
Without separator
Polypropylene (PP) (Sleeve)
ECC1-00-0210-T/XBuy online
Plain Insulation sleeve PEEK, disassemblednonenone70°C 200°CInsulation sleeveReusablePEEK (Sleeve)
Custom reference and separator
ECC1-00-0510-TPAT-Cell-HT, PAT-Cell-AquBuy online
Separator (GF/A) 21.6 x 0.26 mm, 50 pcsBorosilicate glass fiber70°C 200°CSeparatorSingle-useBorosilicate glass fiberECC1-01-0011-A/LPAT-Cell-HT, PAT-Cell-AquSeparator type: Whatman GF/ABuy online
Separator (FS-5P) 21.6 x 0.22 mm, 50 pcsPP fiber/PE membrane70°CSeparatorSingle-usePP fiber/PE membraneECC1-01-0051-A/LPAT-Cell-AquSeparator type: Freudenberg Viledon FS 2226E + Lydall Solupor 5P09B)Buy online
Separator (FS 3005-25), 21.6 x 0.025 mm, 50 pcsPET fiber, Al2O370°CSeparatorSingle-usePET fiber, Al2O3ECC1-01-0036-A/LPAT-Cell-AquSeparator type: Freudenberg Viledon FS 3005-25Buy online
Reed contact (Ni on SS) (10 pcs)70°C 200°CReed contactSingle-useNickel (Ni>99%) on stainless steel 316L (1.4404)ECC1-00-0186-A/XPAT-Cell-HT, PAT-Cell-AquBuy online
Reed contact (Au on SS) (10 pcs)70°C 200°CReed contactReusableGold (Au>99%) on stainless steel 316L (1.4404)ECC1-00-0186-D/XPAT-Cell-HT, PAT-Cell-AquBuy online
Reference ring (Mg) (10 pcs)Magnesium70°C 200°CReference ringSingle-useMagnesium (Mg)ECC1-00-0182-F/XPAT-Cell-HT, PAT-Cell-AquBuy online
Reference ring (Li) (10 pcs)Lithium70°C 200°CReference ringSingle-useLithium (Li)ECC1-00-0182-O/XPAT-Cell-HT, PAT-Cell-AquBuy online
Reference ring (Na) (10 pcs)Sodium70°C 200°CReference ringSingle-useSodium coated (Na)ECC1-00-0182-L/XPAT-Cell-HT, PAT-Cell-AquBuy online
Reference ring II (AC on SS) (10 pcs)Activated carbon70°C 200°CReference ringSingle-useActivated carbon on stainless steelECC1-00-0182-W/XPAT-Cell-HTAC 95%, aqueous binder: CMC 3% / SBR 2%Buy online
Current collector 18 mm, Au (5 pcs)70°C 200°CCurrent collector discReusableGold (Au>99%)ECC1-00-0069-A/VPAT-Cell-HT, PAT-Cell-AquBuy online
Current collector 18 mm, Ti (5 pcs)70°C 200°CCurrent collector discReusableTitanium (Ti >99%, grade 2)ECC1-00-0069-C/VPAT-Cell-HT, PAT-Cell-AquBuy online
Current collector 18 mm, Pt (5 pcs)70°C 200°CCurrent collector discReusablePlatinum (Pt>99%)ECC1-00-0069-D/VPAT-Cell-HT, PAT-Cell-AquBuy online
Current collector 18 mm, Ni (5 pcs)70°C 200°CCurrent collector discReusableNickel (Ni>99%)ECC1-00-0069-F/VPAT-Cell-HT, PAT-Cell-AquBuy online
Sealing ring PE (100 pcs)70°CSealing ringSingle-usePolyethylene (PE)ECC1-00-0232-A/CPAT-Cell_onlyBuy online
Sealing ring, Al (10 pcs)70°C 200°CSealing ringSingle-useAlECC1-00-0232-G/XPAT-Cell_onlyBuy online
Sealing ring PTFE (10 pcs)70°C 200°CSealing ringSingle-usePTFEECC1-00-0232-B/XPAT-Cell_onlyBuy online
Spare parts

Screw cap



Cell base



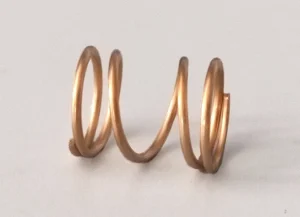

Spring contact holder



Gas sample port

Variants

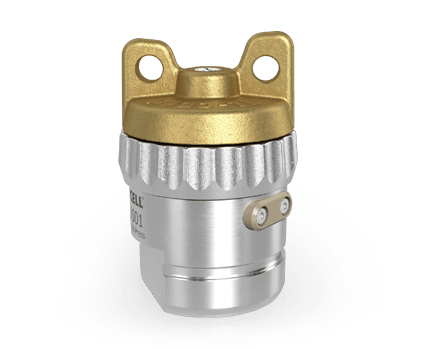

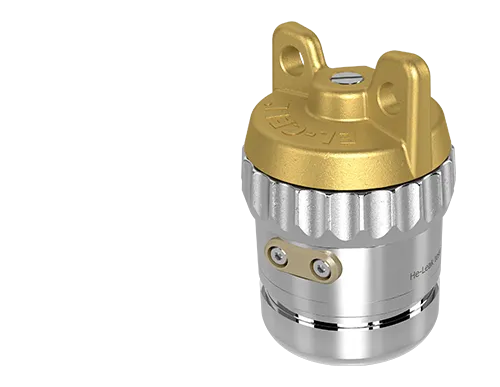

PAT-Cell-Press

  • Laser welded pressure sensor, 0 to 3 bar abs
  • Optimized lid for use with metal seal
  • Analog outputs for pressure and temperature (+-10V) for seamless integration with other instruments
  • Electrode feedthroughs with glass-to-metal seals

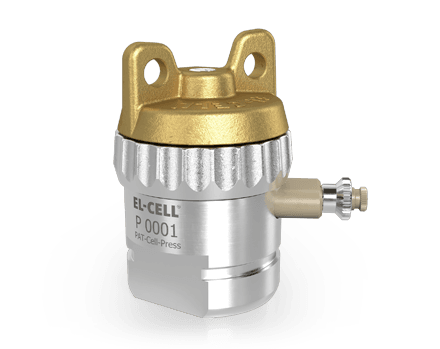

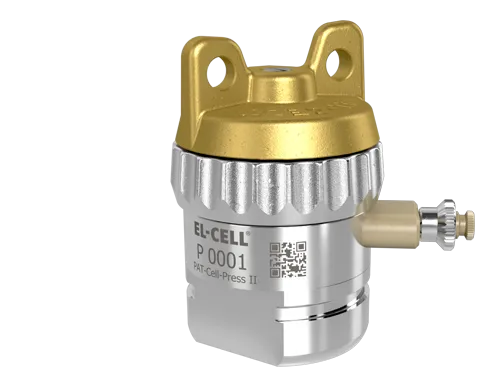

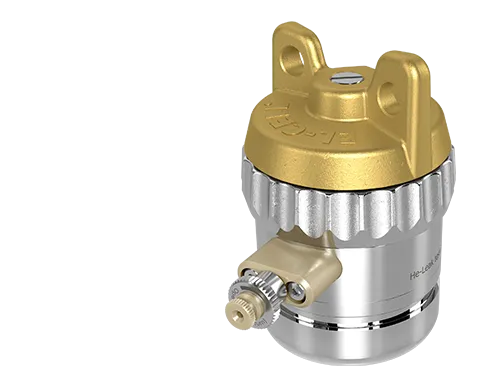

PAT-Cell-Press S

  • Gas sample port
  • Laser welded pressure sensor, 0 to 3 bar abs
  • Optimized lid for use with metal seal
  • Analog outputs for pressure and temperature (+-10V) for seamless integration with other instruments
  • Electrode feedthroughs with glass-to-metal seals

Frequently asked questions

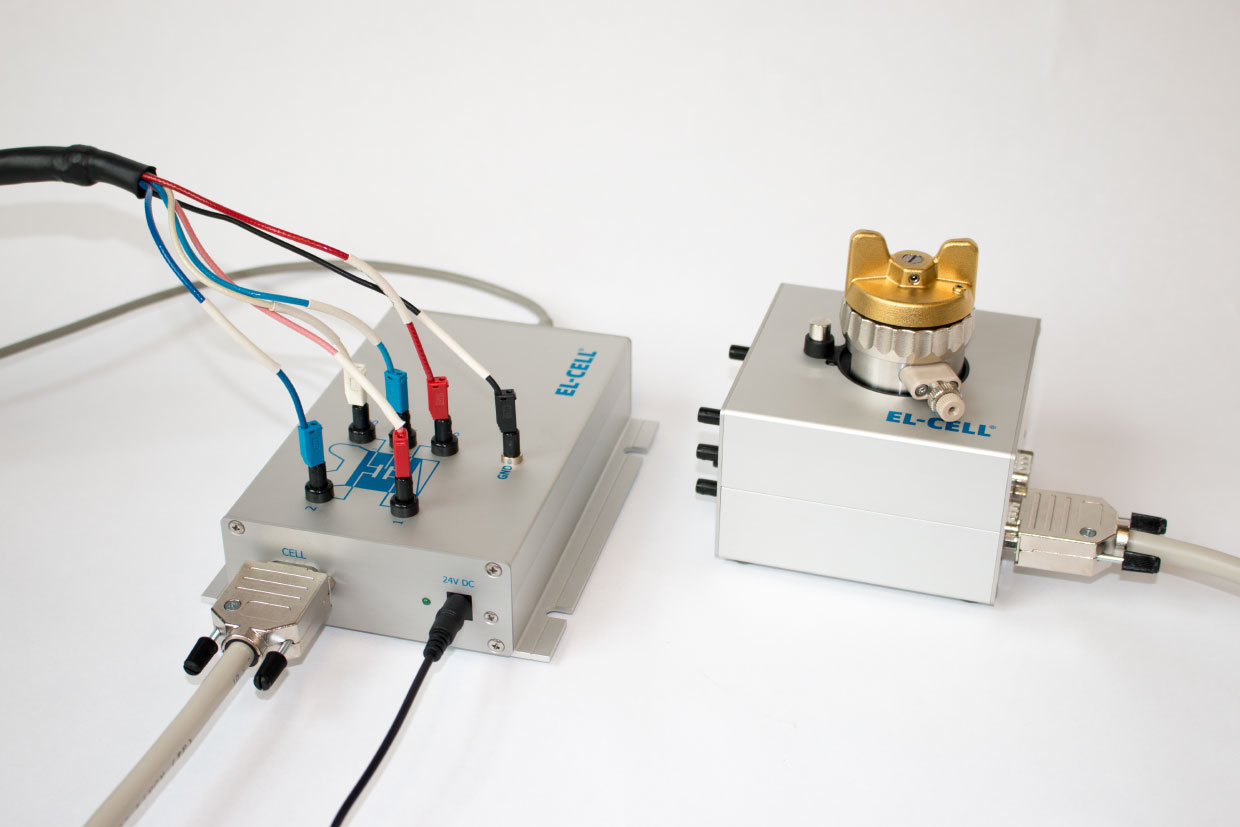

Do you always need a PAT-Press-Box to operate the PAT-Cell-Press?

The PAT-Press-Box is required to read and record the analog pressure signal of a PAT series test cell.

It is required in the following docking stations:

The following devices provide the necessary functions themselves, therefore no PAT-Press-Box is required:

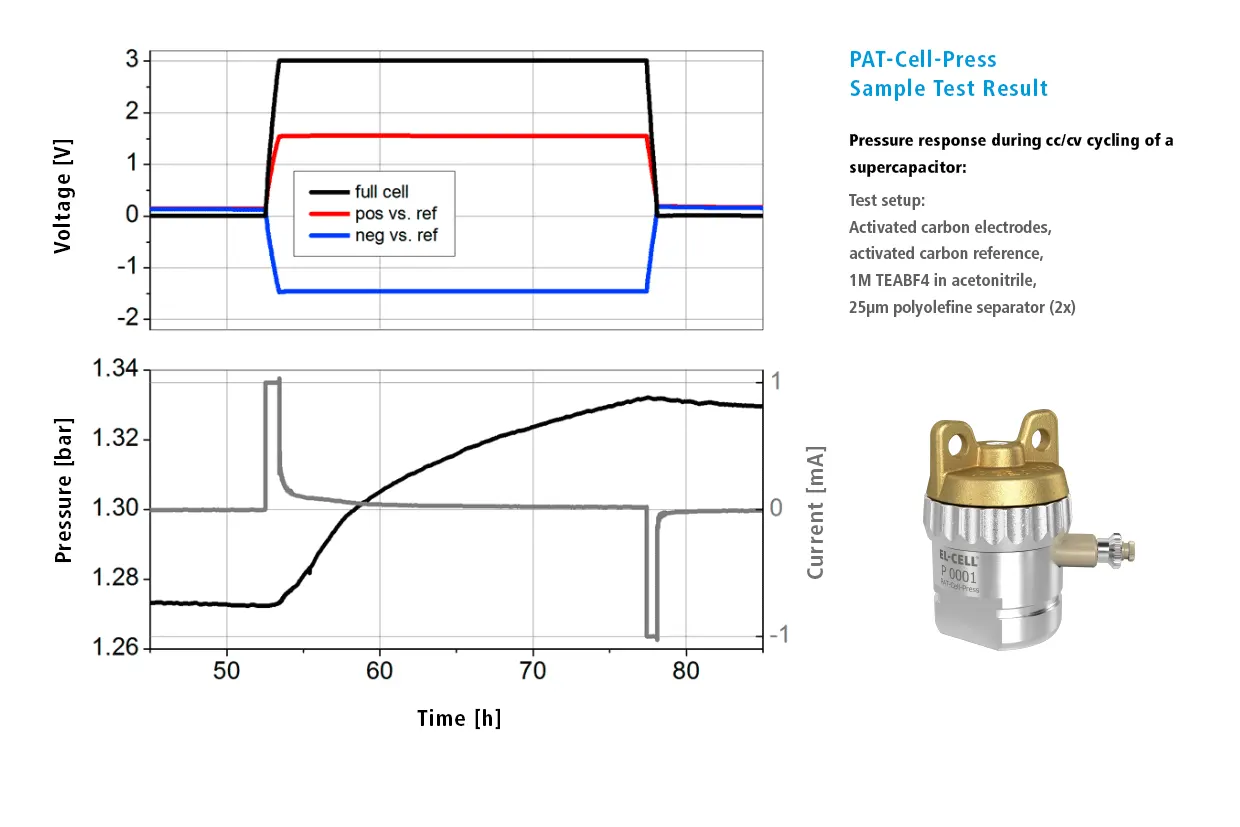

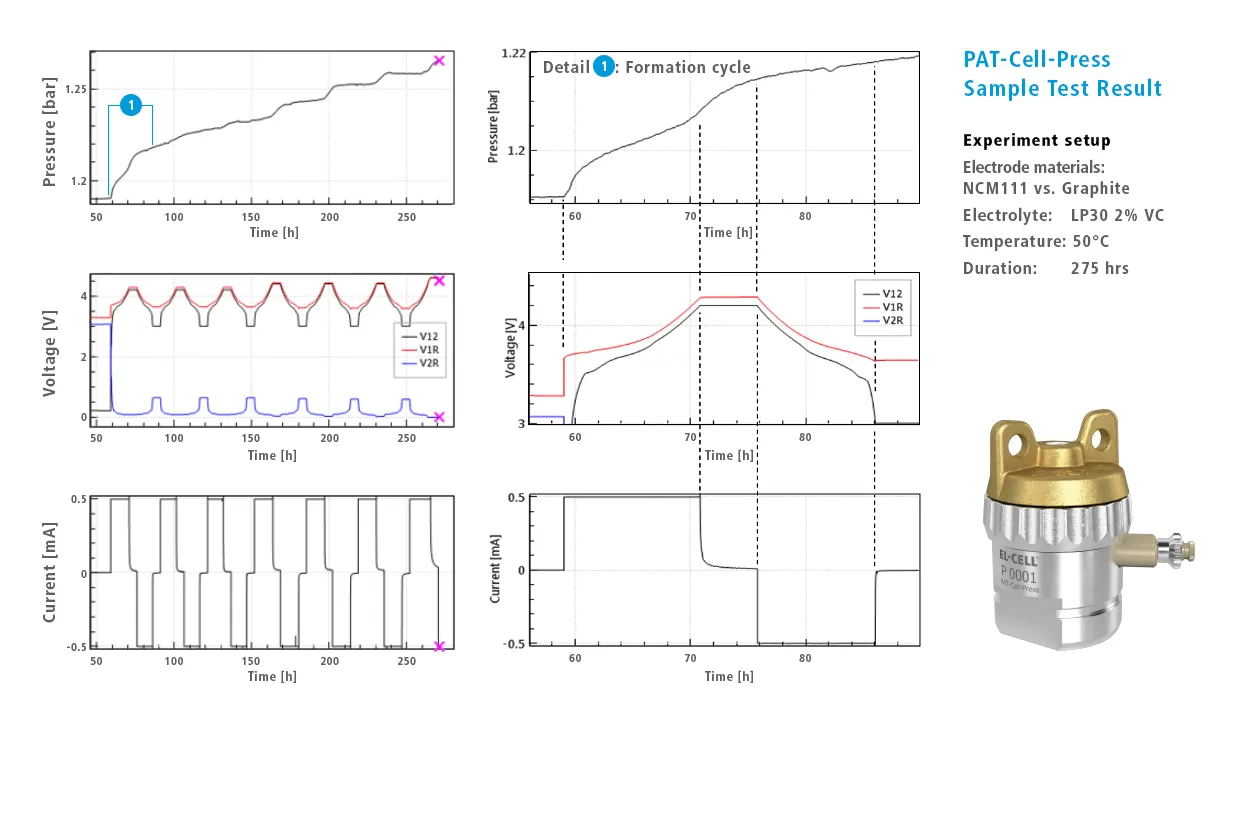

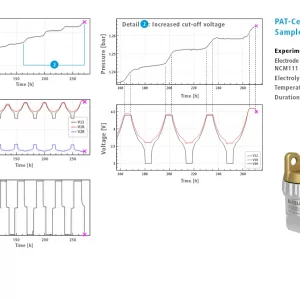

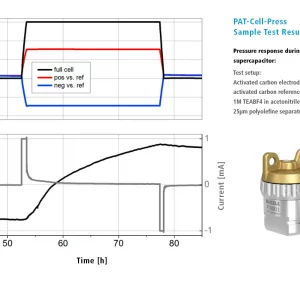

Sample test results

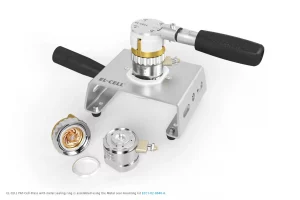

EL-CELL offers metal sealing rings for PAT series test cells for highest demands on cell tightness. This tool kit is designed to ensure the correct installation when using these metal seals. The handy assembly block holds the cell in place, while the torque wrench allows you to close the cell cover with the recommended amount of force.


Product details

Recommended PAT-Core configurations

This information can be used as a guide for building the PAT-Cell. More PAT-Core setups can be found here.

3-electrode testing with aprotic LiPF6 based electrolytes

ComponentItem nameOrder no.
Lower electrode (+) LCO/NCM/LFP..
Upper electrode (-)Li metal
Lower plungerSS or AlECC1-01-0027-C_x* (SS) or ECC1-01-0027-A_x* (Al)
Upper plungerSS or CuECC1-01-0026-C (SS) or ECC1-01-0026-A (Cu)
ReferenceLi metalcontained in insulation sleeve
Reed ContactNi on SScontained in insulation sleeve
SeparatorFS-5Pcontained in insulation sleeve
Lid sealPEECC1-00-0232-A/C
Sleeve (single-use)Insulation sleeve PP (Li-Reference, Separator FS-5P)ECC1-00-0210-V/X
T/°C<70°C
ComponentItem nameOrder no.
Lower electrode (+) Graphite
Upper electrode (-)Li metal
Lower plungerSS or CuECC1-01-0027-C_x* (SS) or ECC1-01-0027-B_x* (Cu)
Upper plungerSS or CuECC1-01-0026-C (SS) or ECC1-01-0026-A (Cu)
ReferenceLi metalcontained in insulation sleeve
Reed contactNi on SScontained in insulation sleeve
SeparatorFS-5Pcontained in insulation sleeve
Lid sealPEECC1-00-0232-A/C
Sleeve (single-use)Insulation sleeve PP (Li-Reference, Separator FS-5P)ECC1-00-0210-V/X
T/°C<70°C
ComponentItem/MaterialOrder no.
Lower electrode (+) LCO/NCM/LFP..
Upper electrode (-)Graphite/LTO
Lower plungerSS or AlECC1-01-0027-C_x* (SS) or ECC1-01-0027-A_x* (Al)
Upper plungerSS or CuECC1-01-0026-C (SS) or ECC1-01-0026-A (Cu)
ReferenceLi metalcontained in insulation sleeve
Reed contactNi on SScontained in insulation sleeve
SeparatorFS-5Pcontained in insulation sleeve
Lid sealPEECC1-00-0232-A/C
Sleeve (single-use)Insulation sleeve PP (Li-Reference, Separator FS-5P)ECC1-00-0210-V/X
T/°C<70°C

2-electrode testing with aprotic LiPF6 based electrolytes

ComponentItem nameOrder no.
Lower electrode (+) LCO/NCM/LFP..
Upper electrode (-)Li metal
Lower plungerSS or AlECC1-01-0027-C_x* (SS) or ECC1-01-0027-A_x* (Al)
Upper plungerSS or CuECC1-01-0026-C (SS) or ECC1-01-0026-A (Cu)
Referencenone
SeparatorFS-5Pcontained in insulation sleeve
Lid sealPEECC1-00-0232-A/C
Sleeve (single-use)Insulation sleeve PP (Separator FS-5P)ECC1-00-0210-W/X
T/°C<70°C
ComponentItem nameOrder no.
Lower electrode (+) Graphite
Upper electrode (-)Li metal
Lower plungerSS or CuECC1-01-0027-C_x* (SS) or ECC1-01-0027-B_x* (Cu)
Upper plungerSS or CuECC1-01-0026-C (SS) or ECC1-01-0026-A (Cu)
Referencenone
SeparatorFS-5Pcontained in insulation sleeve
Lid sealPEECC1-00-0232-A/C
Sleeve (single-use)Insulation sleeve PP (Separator FS-5P)ECC1-00-0210-W/X
T/°C<70°C
ComponentItem/MaterialOrder no.
Lower electrode (+) LCO/NCM/LFP..
Upper electrode (-)Graphite/LTO
Lower plungerSS or AlECC1-01-0027-C_x* (SS) or ECC1-01-0027-A_x* (Al)
Upper plungerSS or CuECC1-01-0026-C (SS) or ECC1-01-0026-A (Cu)
Referencenone
SeparatorFS-5Pcontained in insulation sleeve
Lid sealPEECC1-00-0232-A/C
Sleeve (single-use)Insulation sleeve PP (Separator FS-5P) (10 pcs)ECC1-00-0210-W/X
T/°C<70°C

3-electrode testing with aprotic supercap electrolytes

ComponentItem nameOrder no.
Lower electrode (+) AC**
Upper electrode (-)AC
Lower plungerSS or AlECC1-01-0027-C_x* (SS) or ECC1-01-0027-A_x* (Al)
Upper plungerSS or AlECC1-01-0026-C (SS) or ECC1-01-0026-B (Al)
ReferenceActivated carbon on stainless steelcontained in insulation sleeve
Reed contactNi on SScontained in insulation sleeve
SeparatorFS-5Pcontained in insulation sleeve
Lid sealPEECC1-00-0232-A/C
Sleeve (single-use)Insulation sleeve PP (AC(SS)-Reference ring, Separator FS-5P) ECC1-00-0450-B
T/°C<70°C

*x = Height number (50 to 800). Use our configurator to determine the proper lower plunger.

**AC = Activated carbon

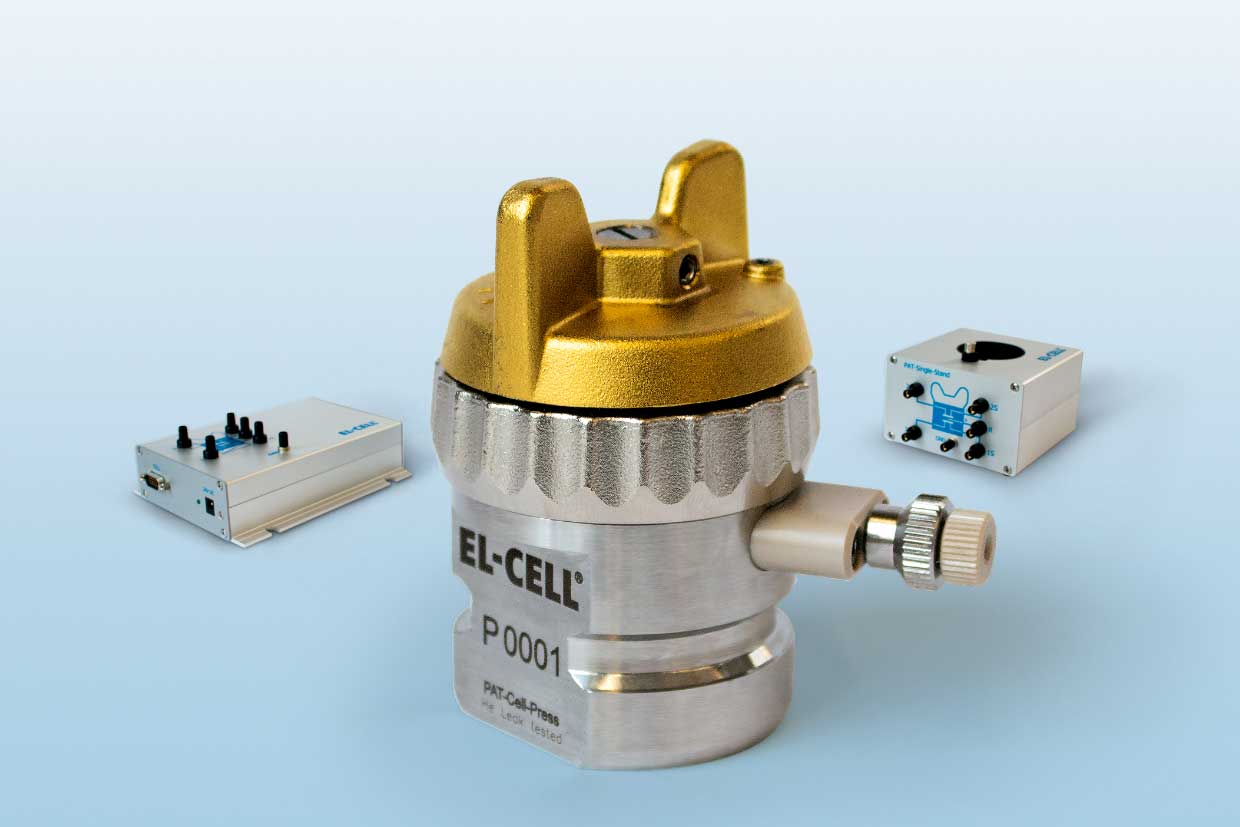

Gallery

Recommended docking stations

The PAT-Cell-Press test cell is fully supported by the following docking / test stations.

PAT-Tester-i-16

The PAT-Tester-i-16 integrates a temperature controlled cell chamber and docking station with a battery tester into one single instrument.

Product details

PAT-Chamber-16

The PAT-Chamber-16 is a temperature-controlled docking station for PAT series test cells.

Product details

PAT-Tester-x-8

The PAT-Tester-x-8 offers maximum flexibility with up to 8 channels for small scale and special purpose testing.

Product details

PAT-Stand-1

The PAT-Stand-1 is a docking station for individual battery testing. The PAT-Cell-Press is fully supported by the PAT-Stand-1 if used in combination with the PAT-Press-Box for data logging.

Product details

PAT-Clamp-1

The PAT-Clamp-1 is a docking station for individual battery testing. The PAT-Cell-Press is fully supported by the PAT-Clamp-1 if used in combination with the PAT-Press-Box for data logging.

Product details

Recommended tools

EL-Cut

High precision cutting pliers to eliminate torn and chipped electrode edges. Recommended diameter size for use with the PAT-Cell-Press is 18 mm.

Product details

ECC-LiPunch

Punching tool for lithium foil. The recommended size for use with the PAT-Cell-Press is 18 mm.

Product details

Related products

PAT-Cell-Gas

PAT-Cell for in-situ gas analysis in a flow-through set-up

Product details

ECC-Air

Test cell for characterization of gas diffusion electrodes in aprotic electrolytes

Product details

ECC-DEMS

Test cell for time-resolved gas analysis. For Li-air and conventional Li-ion chemistries.

Product details

Request a quote

    Form of address

    Your name (required)

    Your company (required)

    Your email address (required)

    Your message

    Loading...

    GDPR Cookie Consent with Real Cookie Banner
