Product overview

Product description

The ECC-Air is another member of the modular ECC-series dedicated to the electrochemical characterization of gas diffusion electrodes in aprotic electrolytes, e.g. for lithium-air batteries.

Basically, the upper diffusion type electrode is contacted by and “breathes” through the perforated stainless steel current collector (plate) on top. The gas volume inside the cell above the perforated plate is accessible via a port in the cell lid. The design includes a reference electrode.

Features

Operation with or without reference electrode

High precision 18 mm diameter sandwich geometry with <0.1 mm electrode concentricity

Reliable low leakage sealing with PE washers

Easy and reliable electrolyte filling during assembly

Fast assembly and dismantling and easy cleaning of cell components

Electrodes are easily accessible for post-mortem analysis

Reusable cell components except for PE seal

Adjustable, reproducible and homogeneous mechanical pressure on electrodes

Materials in media contact are stainless steel 1.4404 and PEEK (other materials on request)

Specifications

Manual

Delivery scope

Spare parts

Test cell

Ref electrode

Product overview

Product description

The ECC-Air is another member of the modular ECC-series dedicated to the electrochemical characterization of gas diffusion electrodes in aprotic electrolytes, e.g. for lithium-air batteries.

Basically, the upper diffusion type electrode is contacted by and “breathes” through the perforated stainless steel current collector (plate) on top. The gas volume inside the cell above the perforated plate is accessible via a port in the cell lid. The design includes a reference electrode.

Features

Operation with or without reference electrode

High precision 18 mm diameter sandwich geometry with <0.1 mm electrode concentricity

Reliable low leakage sealing with PE washers

Easy and reliable electrolyte filling during assembly

Fast assembly and dismantling and easy cleaning of cell components

Electrodes are easily accessible for post-mortem analysis

Reusable cell components except for PE seal

Adjustable, reproducible and homogeneous mechanical pressure on electrodes

Materials in media contact are stainless steel 1.4404 and PEEK (other materials on request)

Specifications

Manual

Delivery scope

Spare parts

Test cell

Ref electrode

The ECC-Air is another member of the modular ECC-series dedicated to the electrochemical characterization of gas diffusion electrodes in aprotic electrolytes, e.g. for lithium-air batteries.

Basically, the upper diffusion type electrode is contacted by and “breathes” through the perforated stainless steel current collector (plate) on top. The gas volume inside the cell above the perforated plate is accessible via a port in the cell lid. The design includes a reference electrode.

ECC-Air overview

Features

Operation with or without reference electrode

High precision 18 mm diameter sandwich geometry with

Reliable low leakage sealing with PE washers

Easy and reliable electrolyte filling during assembly

Fast assembly and dismantling and easy cleaning of cell components

Electrodes are easily accessible for post-mortem analysis

Reusable cell components except for PE seal

Adjustable, reproducible and homogeneous mechanical pressure on electrodes

Materials in media contact are stainless steel 1.4404 and PEEK (other materials on request)

Specifications
Manual
Delivery scope

Gallery

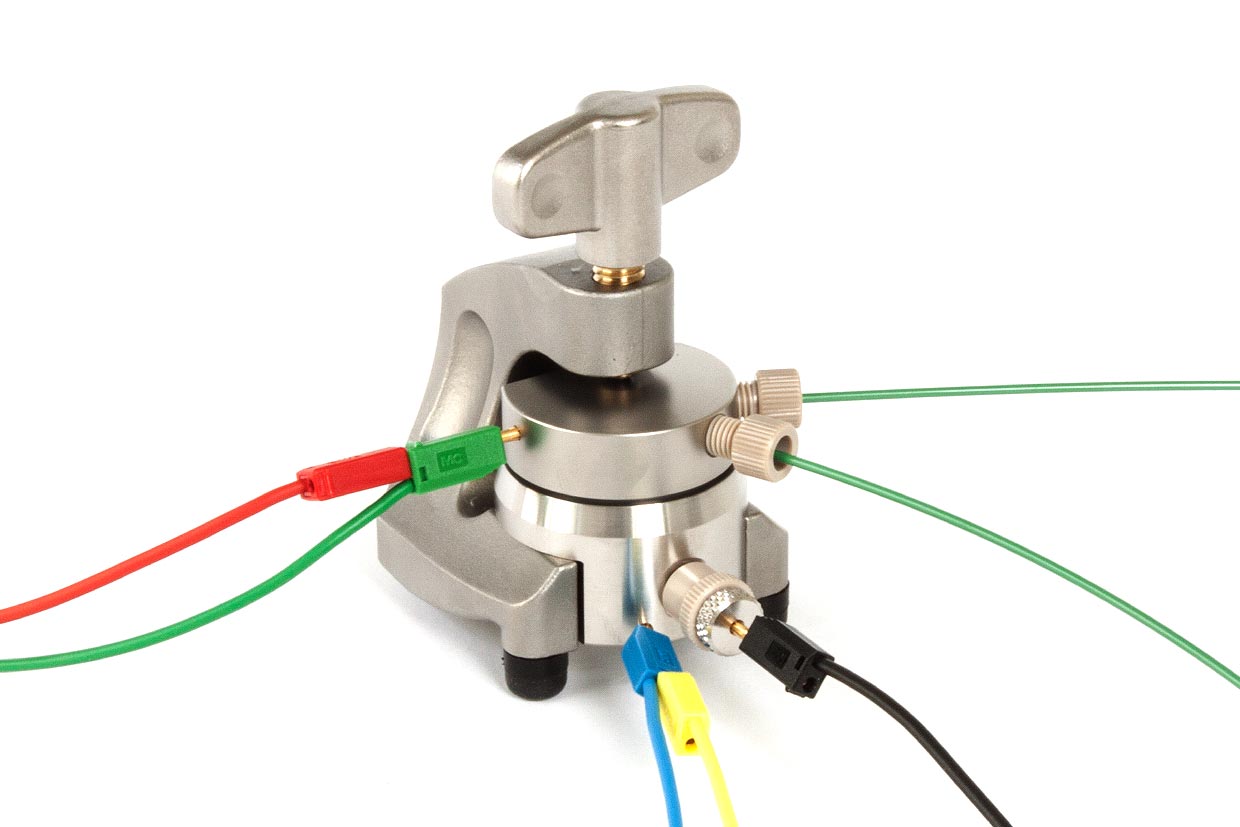

Fully connected ECC-Air test cellFully connected ECC-Air test cell
