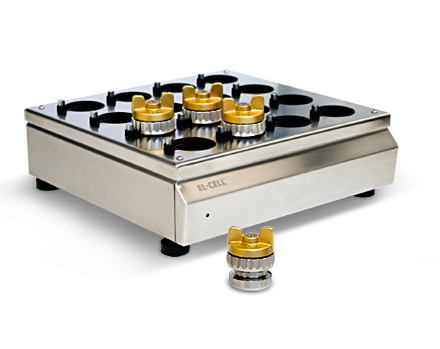

The high throughput docking station for up to 16 PAT-Cells

PAT-Stand-16

The high throughput docking station for up to 16 PAT-Cells

PAT-Stand-16

The high throughput docking station for up to 16 PAT-Cells

Product overview

Product description

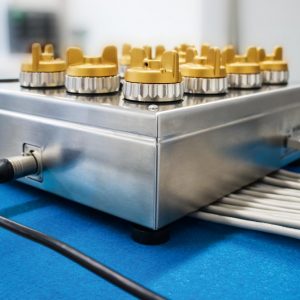

The PAT-Stand-16 is the docking station for up to 16 PAT-Cells in 4 x 4 matrix. The PAT-Stand-16 has a built-in data logger recording full and half cell voltages, cell current, tray temperature and time. The PAT-Stand-16 can be connected permanently to a usual multi-channel potentiostat (like the Biologic MPG-2 or VMP300) or battery tester (like the Maccor 4000).

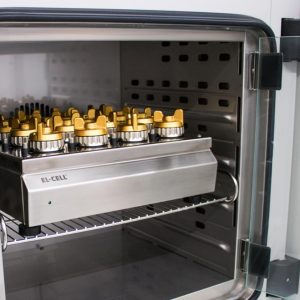

This way, the PAT-Stand-16 saves wiring effort, because it is not necessary to renew the connection of cell and potentiostat for every battery test. The PAT-Stand-16 fits nicely into a usual climate chamber (for example Binder KB53), which saves space in the lab.

All these features make the PAT-Stand-16 with the PAT-Cells the optimal solution for high throughput battery testing.

Schematic view of a connected PAT-Stand-16 setup

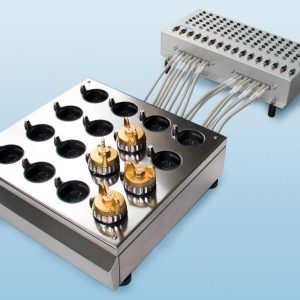

Schematic view of a connected PAT-Stand-16 with PAT-Connect-16 for flexible wiring

Features

4×4 docking station for up to 16 PAT-Cells

Integrated data logger for recording cell data (current, full and half cell voltages) and tray temperature

Compatible with all of today’s multi-channel potentiostats and battery testers

Can be placed on the bench or inside a temperature chamber

Saves wiring effort and space in the lab

Specifications

Height120/148 mm (without/with cells)
Width315 mm
Depth315 mm
Weight6.9 kg (without cells)

Manual

PAT-Stand-16 User Manual
Release1.3
TypePDF
Size0.8 MB
Download

Delivery scope


#ComponentOrder no.
1PAT-Stand-16
2CD containing EC-Link data logger software ECE1-00-0052-A
3Power supply (+15V/2A, -15V/0.8A)ELT9207
4Cable connector NC5FRX (5 pole, female, angled)ELT9227
5Power cord (1.5m) ELT9222
6USB cable (Type A/B angled, 3.0m)ELT9168
Note: The PAT-Stand-16 is usually equipped with open ended cell cables. The user has to assure a proper connection to the battery tester. Cell cables with customized connectors for a specific battery tester are available for surcharge on request. Note: The PAT-Stand-16 is usually equipped with open ended cell cables. The user has to assure a proper connection to the battery tester. Cell cables with customized connectors for a specific battery tester are available for surcharge on request.

Product overview

Product description

The PAT-Stand-16 is the docking station for up to 16 PAT-Cells in 4 x 4 matrix. The PAT-Stand-16 has a built-in data logger recording full and half cell voltages, cell current, tray temperature and time. The PAT-Stand-16 can be connected permanently to a usual multi-channel potentiostat (like the Biologic MPG-2 or VMP300) or battery tester (like the Maccor 4000).

This way, the PAT-Stand-16 saves wiring effort, because it is not necessary to renew the connection of cell and potentiostat for every battery test. The PAT-Stand-16 fits nicely into a usual climate chamber (for example Binder KB53), which saves space in the lab.

All these features make the PAT-Stand-16 with the PAT-Cells the optimal solution for high throughput battery testing.

Schematic view of a connected PAT-Stand-16 setup

Schematic view of a connected PAT-Stand-16 with PAT-Connect-16 for flexible wiring

Features

4×4 docking station for up to 16 PAT-Cells

Integrated data logger for recording cell data (current, full and half cell voltages) and tray temperature

Compatible with all of today’s multi-channel potentiostats and battery testers

Can be placed on the bench or inside a temperature chamber

Saves wiring effort and space in the lab

Specifications

Height120/148 mm (without/with cells)
Width315 mm
Depth315 mm
Weight6.9 kg (without cells)

Manual

PAT-Stand-16 User Manual
Release1.3
TypePDF
Size0.8 MB
Download

Delivery scope


#ComponentOrder no.
1PAT-Stand-16
2CD containing EC-Link data logger software ECE1-00-0052-A
3Power supply (+15V/2A, -15V/0.8A)ELT9207
4Cable connector NC5FRX (5 pole, female, angled)ELT9227
5Power cord (1.5m) ELT9222
6USB cable (Type A/B angled, 3.0m)ELT9168
Note: The PAT-Stand-16 is usually equipped with open ended cell cables. The user has to assure a proper connection to the battery tester. Cell cables with customized connectors for a specific battery tester are available for surcharge on request. Note: The PAT-Stand-16 is usually equipped with open ended cell cables. The user has to assure a proper connection to the battery tester. Cell cables with customized connectors for a specific battery tester are available for surcharge on request.

The PAT-Stand-16 is the docking station for up to 16 PAT-Cells in 4 x 4 matrix. The PAT-Stand-16 has a built-in data logger recording full and half cell voltages, cell current, tray temperature and time. The PAT-Stand-16 can be connected permanently to a usual multi-channel potentiostat (like the Biologic MPG-2 or VMP300) or battery tester (like the Maccor 4000).

This way, the PAT-Stand-16 saves wiring effort, because it is not necessary to renew the connection of cell and potentiostat for every battery test. The PAT-Stand-16 fits nicely into a usual climate chamber (for example Binder KB53), which saves space in the lab.

All these features make the PAT-Stand-16 with the PAT-Cells the optimal solution for high throughput battery testing.

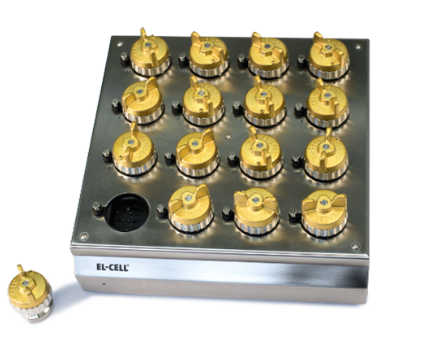

PAT-Stand-16 overview
