PAT-Controller-8

PAT-Controller-8

Control box for up to 8 PAT-Channel-1

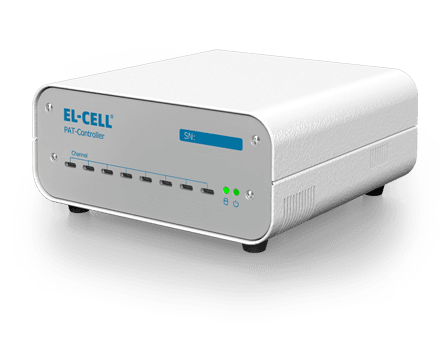

The PAT-Controller-8 is the central control box of the PAT-Tester-x whicht stores the measurement data and enables communication with the EL-Software server.
It has a built-in hard disk, a network port for server communication and 8 USB Type C ports for connection to the PAT-Channel-1. Up to eight PAT-Channel-1 with integrated PStat/GStat/EIS can be operated with one PAT-Controller-8.

Product overview

Features

Internal 256 GB SSD for storing measurement data

LAN port for server connectivity

8 USB 3 Type C ports for connecting PAT-Channel-1
EL-Software included

Specifications
Length 168 mm
Height 78 mm
Width 170 mm
