PAT-Press-Box
Box with data logger for analog gas pressure measurements with PAT series test cells
Product Overview
The PAT-Press-Box is required to read and record the analog pressure signal of a PAT-Cell-Press or PAT-Cell-Gas (P and SP) test cell when the cell is used in a docking station that does not provide this functionality itself. The box is placed between the docking station and the used potentiostat. The integrated data logger records the pressure signal and transmits it to the connected PC. It can then be displayed with the supplied EC-Link software. The PAT-Press-Box is not required for a test cell equipped with a digital gas pressure sensor like the PAT-Cell-Press II and PAT-Cell-Gas II.

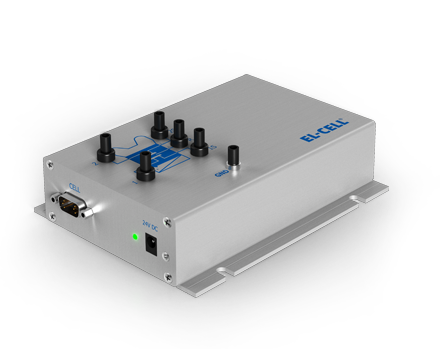

PAT-Press-Box Overview
Specifications
| PAT-Press-Box | |
| Height | 40 mm |
| Width | 160 mm |
| Depth | 130 mm |
| Weight | 0.6 kg |
| Resolution of pressure signal | < 0.2 mbar; linearity < 0.5% FS |
| Resolution of temperature signal | < 0.01 °C; linearity < 0.5% FS |
Manual
 | PAT-Press-Box User Manual | |
| Release | 1.1 | |
| Type | ||
| Size | 400 KB | |
| Download |
