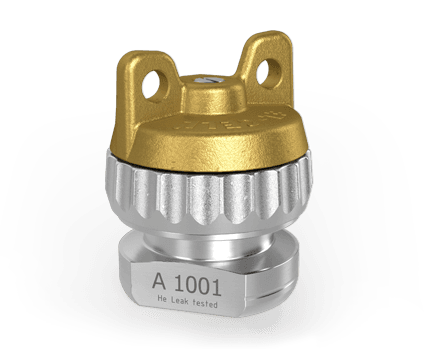

PAT-Cell-HT

Heat-resistant electrochemical battery test cell for up to 200°C

Request a quote Data sheet (PDF)

PAT-Cell-HT

Heat-resistant electrochemical battery< test cell for up to 200°C

Product overview
Data sheet (PDF)
Request a quote

Conduct your Electrochemical Tests at Elevated Temperatures

Product description

Our PAT series test cell for 2- or 3-electrode testing at elevated temperatures

The PAT-Cell-HT is a test cell for 2- and 3-electrode measurements on battery materials at temperatures up to 200°C. It uses the modular PAT-Core concept and can be used for various test purposes. The cell has no wiring but is inserted directly into a PAT battery tester or connected to any commercially available battery tester/potentiostat via a PAT docking station. To fully utilize the temperature range up to 200°C, we recommend using the PAT-Heater-4 docking station.

To meet the challenges of battery tests at elevated temperatures, we offer a special version of the PAT-Core insulation sleeve. This reusable sleeve is made of PEEK (rather than PP) and is especially useful for investigating solid-state (ceramic) electrolyte membranes. Like the standard PP sleeve, the PEEK sleeve can be equipped with different reference materials such as lithium, sodium, or magnesium. The standard current collectors (plungers) complete the PAT-Core. Available plunger materials are aluminum and copper (for single use), or stainless steel 316L and PEEK (for reuse).

Features

NEW! Lid seal highest long-term stability

With the reworked cell design, aluminium seals along with the new metal seal lid can now be used in addition to the proven polymer seals. This can make a difference in long-term measurements.

NEW! Glass-to-metal seals for improved temperature resistance

With the new GTM electrode feedthroughs, the PAT-Cell can now be operated and thermally cycled between -40 to +80° C. Up to 200°C with the PAT-Cell-HT.

NEW! Superior corrosion resistance for next-generation
battery chemistries

Cell base made of stainless steel 1.4404 (316L) for compatibility with highly corrosive electrolytes.

NEW! Guaranteed tightness

All PAT-Cell-HT test cells are helium leak tested at the EL-Cell factory.

The PAT-Cell-HT is fully backwards compatible to previous versions.

PAT-series test cell for 2-or 3-electrode testing at elevated temperatures

Continuous operating temperature: up to 200°C

PAT-Core design with or without ring-shaped reference electrode

Compatible with solid state electrolyte membranes

Specifications


Diameter	49.5 mm
Height	61 mm
Weight	0.4 kg
Electrode diameter	18 mm
Separator / membrane diameter	21.6 mm
Temperature resistance	-40 to 200° C

Compatible PAT docking stations


	Features of the PAT-Cell-HT
Docking / Test station	Charge	Discharge	Impedance	Temperature control
PAT-Heater-4
PAT-Stand-1
PAT-Clamp-1
PAT-Stand-1 U
PAT-Stand-4
PAT-Stand-16
PAT-Chamber-16
PAT-Tester-i-16
PAT-Tester-x-8

Consumables

Item name	Reference material	Separator material	Temperature range	Component type	Usage	Material	Order number	Cell design
Upper plunger (Cu)			70°C 200°C	Plunger	Single-use	Copper (Cu, 99.9 (E-CU 58))	ECC1-01-0026-A	PAT-Cell-HT
Upper plunger (Al)			70°C 200°C	Plunger	Single-use	Aluminum (Al, 99.5 (EN-AW-1050))	ECC1-01-0026-B	PAT-Cell-HT
Upper plunger (Stainless steel)			70°C 200°C	Plunger	Reusable	Stainless steel 316L (1.4404)	ECC1-01-0026-C	PAT-Cell-HT
Upper plunger (PEEK) with upper feed wire (Au) and disc spring (Au)			70°C 200°C	Plunger	Reusable	PEEK (Plunger) Gold (Au) (Feed wire and disc spring)	ECC1-01-0065-A	PAT-Cell-Aqu, PAT-Cell-HT
Lower plunger (Cu)			70°C 200°C	Plunger	Single-use	Copper (Cu, 99.9 (E-CU 58))	ECC1-01-0027-B_x (x = height number 50 to 800)	PAT-Cell-HT
Lower plunger (Al)			70°C 200°C	Plunger	Single-use	Aluminum (Al, 99.5 (EN-AW-1050))	ECC1-01-0027-A_x (x = height number 50 to 800)	PAT-Cell-HT
Lower plunger (Stainless steel)			70°C 200°C	Plunger	Reusable	Stainless steel 316L (1.4404)	ECC1-01-0027-C_x (x = height number 50 to 800)	PAT-Cell-HT
Lower plunger (PEEK) with lower feed wire (Au) and disk spring (Au)			70°C 200°C	Plunger	Reusable	PEEK (Plunger) Gold (Au) (Feed wire and disc spring)	ECC1-01-0055-A_x	PAT-Cell-HT, PAT-Cell-Aqu
Insulation sleeve PP (Al-Reference, Separator Customized) (10 pcs)	Aluminum	Provided by customer	70°C	Insulation sleeve	Single-use	Aluminum (Al) (Reference) Custom separator Polypropylene (PP) (Sleeve)	ECC1-00-0420-D/X
Insulation sleeve PP (Na-Reference, Separator GF/A) (10 pcs)	Sodium	Borosilicate glass fiber	70°C	Insulation sleeve	Single-use	Sodium (Na) (Reference) Borosilicate glass fiber (Separator) Polypropylene (PP) (Sleeve)	ECC1-00-0210-U/X		Separator type: Whatman GF/A
Insulation sleeve PP (Mg-Reference, Separator GF/A) (10 pcs)	Magnesium	Borosilicate glass fiber	70°C	Insulation sleeve	Single-use	Magnesium (Mg) (Reference) Borosilicate glass fiber (Separator) Polypropylene (PP) (Sleeve)	ECC1-00-0210-H/X		Separator type: Whatman GF/A
Insulation sleeve PP (Al-Reference, Separator GF/A) (10 pcs)	Aluminum	Borosilicate glass fiber	70°C	Insulation sleeve	Single-use	Aluminum (Al) (Reference) Borosilicate glass fiber (Separator) Polypropylene (PP) (Sleeve)	ECC1-00-0210-J/X		Separator type: Whatman GF/A
Insulation sleeve PP (Mg-Reference, Separator Customized) (10 pcs)	Magnesium	Provided by customer	70°C	Insulation sleeve	Single-use	Magnesium (Mg) (Reference) Custom separator Polypropylene (PP) (Sleeve)	ECC1-00-0420-C/X
Insulation sleeve PP (AC-Reference, Separator Customized) (10 pcs)	Activated carbon	Provided by customer	70°C	Insulation sleeve	Single-use	Activated carbon (Reference) Custom separator Polypropylene (PP) (Sleeve)	ECC1-00-0420-E/X
Insulation sleeve PP (Na-Reference, Separator Customized) (10 pcs)	Sodium	Provided by customer	70°C	Insulation sleeve	Single-use	Sodium (Na) (Reference) Custom separator Polypropylene (PP) (Sleeve)	ECC1-00-0420-F/X
Insulation sleeve PP (AC(SS)-Reference ring, Separator GF/A) (10 pcs)	Activated carbon on stainless steel	Borosilicate glass fiber	70°C	Insulation sleeve	Single-use	Activated carbon on stainless steel (Reference) Borosilicate glass fiber (Separator) Polypropylene (PP) (Sleeve)	ECC1-00-0450-M/X		Separator type: Whatman GF/A, 260 µm
Insulation sleeve PP (AC(SS)-Reference ring, Separator FS-5P) (10 pcs)	Activated carbon on stainless steel	PP fiber/PE membrane	70°C	Insulation sleeve	Single-use	Activated carbon on stainless steel (Reference) PP fiber/PE membrane (Separator) Polypropylene (PP) (Sleeve)	ECC1-00-0450-N/X		Separator type: Freudenberg Viledon FS 2226E + Lydall Solupor 5P09B, 220 µm)
Insulation sleeve PP (Na-Reference, Separator FS-5P) (10 pcs)	Sodium	PP fiber/PE membrane	70°C	Insulation sleeve	Single-use	Sodium (Na) (Reference) PP fiber/PE membrane (Separator) Polypropylene (PP) (Sleeve)	ECC1-00-0210-X/X		Separator type: Freudenberg Viledon FS 2226E + Lydall Solupor 5P09B)
Insulation sleeve PP (Li-Reference, Separator Customized) (10 pcs)	Lithium	Provided by customer	70°C	Insulation sleeve	Single-use	Lithium (Li) (Reference) Custom separator Polypropylene (PP) (Sleeve)	ECC1-00-0420-A/X
Insulation sleeve PP (Li-Reference, Separator GF/A) (10 pcs)	Lithium	Borosilicate glass fiber	70°C	Insulation sleeve	Single-use	Lithium (Li) (Reference) Borosilicate glass fiber (Separator) Polypropylene (PP) (Sleeve)	ECC1-00-0210-O/X		Separator type: Whatman GF/A
Insulation sleeve PP (Li-Reference, Separator FS 3005-25) (10 pcs)	Lithium	PET fiber, Al₂O₃	70°C	Insulation sleeve	Single-use	Lithium (Li) (Reference) PET fiber, Al₂O₃ (Separator) Polypropylene (PP) (Sleeve)	ECC1-00-0210-A/X		Separator type: Freudenberg Viledon FS 3005-25
Insulation sleeve PP (Li-Reference, Separator FS-5P) (10 pcs)	Lithium	PP fiber/PE membrane	70°C	Insulation sleeve	Single-use	Lithium (Li) (Reference) PP fiber/PE membrane (Separator) Polypropylene (PP) (Sleeve)	ECC1-00-0210-V/X		Separator type: Freudenberg Viledon FS 2226E + Lydall Solupor 5P09B)
Insulation sleeve PP (Separator Customized, if appl. Clamping ring) (10 pcs)	none	Provided by customer	70°C	Insulation sleeve	Single-use	Custom reference and separator Polypropylene (PP) (Sleeve)	ECC1-00-0420-B/X
Insulation sleeve PP (Separator GF/A) (10 pcs)	none	Borosilicate glass fiber	70°C	Insulation sleeve	Single-use	Custom reference Borosilicate glass fiber (Separator) Polypropylene (PP) (Sleeve)	ECC1-00-0210-P/X		Separator type: Whatman GF/A
Insulation sleeve PP (Separator FS 3005-25) (10 pcs)	none	PET fiber, Al₂O₃	70°C	Insulation sleeve	Single-use	Custom reference PET fiber, Al₂O₃ (Separator) Polypropylene (PP) (Sleeve)	ECC1-00-0210-B/X		Separator type: Freudenberg Viledon FS 3005-25
Insulation sleeve PP (Separator FS-5P) (10 pcs)	none	PP fiber/PE membrane	70°C	Insulation sleeve	Single-use	Custom reference PP fiber/PE membrane (Separator) Polypropylene (PP) (Sleeve)	ECC1-00-0210-W/X		Separator type: Freudenberg Viledon FS 2226E + Lydall Solupor 5P09B)
Plain Insulation sleeve PP (disassembled) (10 pcs)	none	none	70°C	Insulation sleeve	Single-use	Custom reference and separator Polypropylene (PP) (Sleeve)	ECC1-00-0210-D/X
Plain Insulation sleeve PP (Li-Reference, disassembled) (10 pcs)	Lithium	none	70°C	Insulation sleeve	Single-use	Lithium (Li) (Reference) Custom separator Polypropylene (PP) (Sleeve)	ECC1-00-0210-R/X
Plain Insulation sleeve PEEK, disassembled	none	none	70°C 200°C	Insulation sleeve	Reusable	PEEK (Sleeve) Custom reference and separator	ECC1-00-0510-T	PAT-Cell-HT, PAT-Cell-Aqu
Separator (GF/A) 21.6 x 0.26 mm, 50 pcs		Borosilicate glass fiber	70°C 200°C	Separator	Single-use	Borosilicate glass fiber	ECC1-01-0011-A/L	PAT-Cell-HT, PAT-Cell-Aqu	Separator type: Whatman GF/A
Separator (FS-5P) 21.6 x 0.22 mm, 50 pcs		PP fiber/PE membrane	70°C	Separator	Single-use	PP fiber/PE membrane	ECC1-01-0051-A/L	PAT-Cell-Aqu	Separator type: Freudenberg Viledon FS 2226E + Lydall Solupor 5P09B)
Separator (FS 3005-25), 21.6 x 0.025 mm, 50 pcs		PET fiber, Al₂O₃	70°C	Separator	Single-use	PET fiber, Al₂O₃	ECC1-01-0036-A/L	PAT-Cell-Aqu	Separator type: Freudenberg Viledon FS 3005-25
Reed contact (Ni on SS) (10 pcs)			70°C 200°C	Reed contact	Single-use	Nickel (Ni>99%) on stainless steel 316L (1.4404)	ECC1-00-0186-A/X	PAT-Cell-HT, PAT-Cell-Aqu
Reed contact (Au on SS) (10 pcs)			70°C 200°C	Reed contact	Reusable	Gold (Au>99%) on stainless steel 316L (1.4404)	ECC1-00-0186-D/X	PAT-Cell-HT, PAT-Cell-Aqu
Reference ring (Mg) (10 pcs)	Magnesium		70°C 200°C	Reference ring	Single-use	Magnesium (Mg)	ECC1-00-0182-F/X	PAT-Cell-HT, PAT-Cell-Aqu
Reference ring (Li) (10 pcs)	Lithium		70°C 200°C	Reference ring	Single-use	Lithium (Li)	ECC1-00-0182-O/X	PAT-Cell-HT, PAT-Cell-Aqu
Reference ring II (AC on SS) (10 pcs)	Activated carbon		70°C 200°C	Reference ring	Single-use	Activated carbon on stainless steel	ECC1-00-0182-W/X	PAT-Cell-HT	AC 95%, aqueous binder: CMC 3% / SBR 2%
Reference ring (AC) (10 pcs)	Activated carbon		70°C 200°C	Reference ring	Single-use	Activated carbon	ECC1-00-0182-T/X	PAT-Cell-Aqu
Current collector 18 mm, Au (5 pcs)			70°C 200°C	Current collector disc	Reusable	Gold (Au>99%)	ECC1-00-0069-A/V	PAT-Cell-HT, PAT-Cell-Aqu
Current collector 18 mm, Ti (5 pcs)			70°C 200°C	Current collector disc	Reusable	Titanium (Ti >99%, grade 2)	ECC1-00-0069-C/V	PAT-Cell-HT, PAT-Cell-Aqu
Current collector 18 mm, Pt (5 pcs)			70°C 200°C	Current collector disc	Reusable	Platinum (Pt>99%)	ECC1-00-0069-D/V	PAT-Cell-HT, PAT-Cell-Aqu
Current collector 18 mm, Ni (5 pcs)			70°C 200°C	Current collector disc	Reusable	Nickel (Ni>99%)	ECC1-00-0069-F/V	PAT-Cell-HT, PAT-Cell-Aqu
Sealing ring PE (100 pcs)			70°C	Sealing ring	Single-use	Polyethylene (PE)	ECC1-00-0232-A/C	PAT-Cell_only
Sealing ring, Al (washer)(annealed), 10 pcs			70°C 200°C	Sealing ring	Single-use	Aluminum (Al) 3.3315	ECC1-00-0232-G/X	PAT-Cell-HT, PAT-Cell-Aqu, PAT-Cell-Press
Sealing ring PTFE (10 pcs)			70°C 200°C	Sealing ring	Single-use	PTFE	ECC1-00-0232-B/X	PAT-Cell-Aqu, PAT-Cell-HT
Ferrule 1.0 mm (50 pcs)			70°C	Ferrule	Reusable	PTFE	ECC1-00-0029-B/L	ECC-PAT-Core
Ferrule (plug) (50 pcs)			70°C	Ferrule	Reusable	PTFE	ECC1-00-0029-D/L	ECC-PAT-Core
PE Seal (50 pcs)			70°C	Sealing ring	Single-use	Polyethylene (PE)	ECC1-00-0053-A/L	ECC-PAT-Core

Our PAT series test cell for 2-or 3-electrode testing at elevated temperatures

The PAT-Cell is a test cell for 2- and 3-electrode measurements on battery materials at temperatures up to 200°C. It uses the modular PAT-Core concept and can, therefore, be used for various test purposes. The cell has no wiring but is inserted directly into a PAT battery tester or connected to any commercially available battery tester/potentiostat via a PAT docking station. To fully utilize the temperature range up to 200°C, we recommend using the PAT-Heater-4 docking station.

To meet the challenges of battery tests at elevated temperatures, we offer a special version of the PAT-Core insulation sleeve. This reusable sleeve is made of PEEK (rather than PP) and is especially useful for the investigation of solid state (ceramic) electrolyte membranes. Just like the standard PP sleeve, the PEEK sleeve can be equipped with different reference materials such as lithium, sodium or magnesium. The standard current collectors (plungers) complete the PAT-Core. Available plunger materials are aluminum and copper (for single use), or stainless steel 316L and PEEK (for reuse).

PAT-Cell-HT Overview

Features

PAT-series test cell for 2-or 3-electrode testing at elevated temperatures

Continuous operating temperature: up to 200°C

Demountable PEEK insulation sleeve for self-installation

Single-use ring-shaped reference ring and reed contact

Compatible with solid state electrolyte membranes

Specifications

Compatible PAT docking stations


	Features of the PAT-Cell-HT
Docking / Test station	Charge	Discharge	Impedance	Temperature control
PAT-Heater-4
PAT-Stand-1
PAT-Clamp-1
PAT-Stand-1 U
PAT-Stand-4
PAT-Stand-16
PAT-Chamber-16
PAT-Tester-i-16
PAT-Tester-x-8

Consumables

Item name	Reference material	Separator material	Temperature range	Component type	Usage	Material	Order number	Cell design
Upper plunger (Cu)			70°C 200°C	Plunger	Single-use	Copper (Cu, 99.9 (E-CU 58))	ECC1-01-0026-A	PAT-Cell-HT
Upper plunger (Al)			70°C 200°C	Plunger	Single-use	Aluminum (Al, 99.5 (EN-AW-1050))	ECC1-01-0026-B	PAT-Cell-HT
Upper plunger (Stainless steel)			70°C 200°C	Plunger	Reusable	Stainless steel 316L (1.4404)	ECC1-01-0026-C	PAT-Cell-HT
Upper plunger (PEEK) with upper feed wire (Au) and disc spring (Au)			70°C 200°C	Plunger	Reusable	PEEK (Plunger) Gold (Au) (Feed wire and disc spring)	ECC1-01-0065-A	PAT-Cell-Aqu, PAT-Cell-HT
Lower plunger (Cu)			70°C 200°C	Plunger	Single-use	Copper (Cu, 99.9 (E-CU 58))	ECC1-01-0027-B_x (x = height number 50 to 800)	PAT-Cell-HT
Lower plunger (Al)			70°C 200°C	Plunger	Single-use	Aluminum (Al, 99.5 (EN-AW-1050))	ECC1-01-0027-A_x (x = height number 50 to 800)	PAT-Cell-HT
Lower plunger (Stainless steel)			70°C 200°C	Plunger	Reusable	Stainless steel 316L (1.4404)	ECC1-01-0027-C_x (x = height number 50 to 800)	PAT-Cell-HT
Lower plunger (PEEK) with lower feed wire (Au) and disk spring (Au)			70°C 200°C	Plunger	Reusable	PEEK (Plunger) Gold (Au) (Feed wire and disc spring)	ECC1-01-0055-A_x	PAT-Cell-HT, PAT-Cell-Aqu
Insulation sleeve PP (Al-Reference, Separator Customized) (10 pcs)	Aluminum	Provided by customer	70°C	Insulation sleeve	Single-use	Aluminum (Al) (Reference) Custom separator Polypropylene (PP) (Sleeve)	ECC1-00-0420-D/X
Insulation sleeve PP (Na-Reference, Separator GF/A) (10 pcs)	Sodium	Borosilicate glass fiber	70°C	Insulation sleeve	Single-use	Sodium (Na) (Reference) Borosilicate glass fiber (Separator) Polypropylene (PP) (Sleeve)	ECC1-00-0210-U/X		Separator type: Whatman GF/A
Insulation sleeve PP (Mg-Reference, Separator GF/A) (10 pcs)	Magnesium	Borosilicate glass fiber	70°C	Insulation sleeve	Single-use	Magnesium (Mg) (Reference) Borosilicate glass fiber (Separator) Polypropylene (PP) (Sleeve)	ECC1-00-0210-H/X		Separator type: Whatman GF/A
Insulation sleeve PP (Al-Reference, Separator GF/A) (10 pcs)	Aluminum	Borosilicate glass fiber	70°C	Insulation sleeve	Single-use	Aluminum (Al) (Reference) Borosilicate glass fiber (Separator) Polypropylene (PP) (Sleeve)	ECC1-00-0210-J/X		Separator type: Whatman GF/A
Insulation sleeve PP (Mg-Reference, Separator Customized) (10 pcs)	Magnesium	Provided by customer	70°C	Insulation sleeve	Single-use	Magnesium (Mg) (Reference) Custom separator Polypropylene (PP) (Sleeve)	ECC1-00-0420-C/X
Insulation sleeve PP (AC-Reference, Separator Customized) (10 pcs)	Activated carbon	Provided by customer	70°C	Insulation sleeve	Single-use	Activated carbon (Reference) Custom separator Polypropylene (PP) (Sleeve)	ECC1-00-0420-E/X
Insulation sleeve PP (Na-Reference, Separator Customized) (10 pcs)	Sodium	Provided by customer	70°C	Insulation sleeve	Single-use	Sodium (Na) (Reference) Custom separator Polypropylene (PP) (Sleeve)	ECC1-00-0420-F/X
Insulation sleeve PP (AC(SS)-Reference ring, Separator GF/A) (10 pcs)	Activated carbon on stainless steel	Borosilicate glass fiber	70°C	Insulation sleeve	Single-use	Activated carbon on stainless steel (Reference) Borosilicate glass fiber (Separator) Polypropylene (PP) (Sleeve)	ECC1-00-0450-M/X		Separator type: Whatman GF/A, 260 µm
Insulation sleeve PP (AC(SS)-Reference ring, Separator FS-5P) (10 pcs)	Activated carbon on stainless steel	PP fiber/PE membrane	70°C	Insulation sleeve	Single-use	Activated carbon on stainless steel (Reference) PP fiber/PE membrane (Separator) Polypropylene (PP) (Sleeve)	ECC1-00-0450-N/X		Separator type: Freudenberg Viledon FS 2226E + Lydall Solupor 5P09B, 220 µm)
Insulation sleeve PP (Na-Reference, Separator FS-5P) (10 pcs)	Sodium	PP fiber/PE membrane	70°C	Insulation sleeve	Single-use	Sodium (Na) (Reference) PP fiber/PE membrane (Separator) Polypropylene (PP) (Sleeve)	ECC1-00-0210-X/X		Separator type: Freudenberg Viledon FS 2226E + Lydall Solupor 5P09B)
Insulation sleeve PP (Li-Reference, Separator Customized) (10 pcs)	Lithium	Provided by customer	70°C	Insulation sleeve	Single-use	Lithium (Li) (Reference) Custom separator Polypropylene (PP) (Sleeve)	ECC1-00-0420-A/X
Insulation sleeve PP (Li-Reference, Separator GF/A) (10 pcs)	Lithium	Borosilicate glass fiber	70°C	Insulation sleeve	Single-use	Lithium (Li) (Reference) Borosilicate glass fiber (Separator) Polypropylene (PP) (Sleeve)	ECC1-00-0210-O/X		Separator type: Whatman GF/A
Insulation sleeve PP (Li-Reference, Separator FS 3005-25) (10 pcs)	Lithium	PET fiber, Al₂O₃	70°C	Insulation sleeve	Single-use	Lithium (Li) (Reference) PET fiber, Al₂O₃ (Separator) Polypropylene (PP) (Sleeve)	ECC1-00-0210-A/X		Separator type: Freudenberg Viledon FS 3005-25
Insulation sleeve PP (Li-Reference, Separator FS-5P) (10 pcs)	Lithium	PP fiber/PE membrane	70°C	Insulation sleeve	Single-use	Lithium (Li) (Reference) PP fiber/PE membrane (Separator) Polypropylene (PP) (Sleeve)	ECC1-00-0210-V/X		Separator type: Freudenberg Viledon FS 2226E + Lydall Solupor 5P09B)
Insulation sleeve PP (Separator Customized, if appl. Clamping ring) (10 pcs)	none	Provided by customer	70°C	Insulation sleeve	Single-use	Custom reference and separator Polypropylene (PP) (Sleeve)	ECC1-00-0420-B/X
Insulation sleeve PP (Separator GF/A) (10 pcs)	none	Borosilicate glass fiber	70°C	Insulation sleeve	Single-use	Custom reference Borosilicate glass fiber (Separator) Polypropylene (PP) (Sleeve)	ECC1-00-0210-P/X		Separator type: Whatman GF/A
Insulation sleeve PP (Separator FS 3005-25) (10 pcs)	none	PET fiber, Al₂O₃	70°C	Insulation sleeve	Single-use	Custom reference PET fiber, Al₂O₃ (Separator) Polypropylene (PP) (Sleeve)	ECC1-00-0210-B/X		Separator type: Freudenberg Viledon FS 3005-25
Insulation sleeve PP (Separator FS-5P) (10 pcs)	none	PP fiber/PE membrane	70°C	Insulation sleeve	Single-use	Custom reference PP fiber/PE membrane (Separator) Polypropylene (PP) (Sleeve)	ECC1-00-0210-W/X		Separator type: Freudenberg Viledon FS 2226E + Lydall Solupor 5P09B)
Plain Insulation sleeve PP (disassembled) (10 pcs)	none	none	70°C	Insulation sleeve	Single-use	Custom reference and separator Polypropylene (PP) (Sleeve)	ECC1-00-0210-D/X
Plain Insulation sleeve PP (Li-Reference, disassembled) (10 pcs)	Lithium	none	70°C	Insulation sleeve	Single-use	Lithium (Li) (Reference) Custom separator Polypropylene (PP) (Sleeve)	ECC1-00-0210-R/X
Plain Insulation sleeve PEEK, disassembled	none	none	70°C 200°C	Insulation sleeve	Reusable	PEEK (Sleeve) Custom reference and separator	ECC1-00-0510-T	PAT-Cell-HT, PAT-Cell-Aqu
Separator (GF/A) 21.6 x 0.26 mm, 50 pcs		Borosilicate glass fiber	70°C 200°C	Separator	Single-use	Borosilicate glass fiber	ECC1-01-0011-A/L	PAT-Cell-HT, PAT-Cell-Aqu	Separator type: Whatman GF/A
Separator (FS-5P) 21.6 x 0.22 mm, 50 pcs		PP fiber/PE membrane	70°C	Separator	Single-use	PP fiber/PE membrane	ECC1-01-0051-A/L	PAT-Cell-Aqu	Separator type: Freudenberg Viledon FS 2226E + Lydall Solupor 5P09B)
Separator (FS 3005-25), 21.6 x 0.025 mm, 50 pcs		PET fiber, Al₂O₃	70°C	Separator	Single-use	PET fiber, Al₂O₃	ECC1-01-0036-A/L	PAT-Cell-Aqu	Separator type: Freudenberg Viledon FS 3005-25
Reed contact (Ni on SS) (10 pcs)			70°C 200°C	Reed contact	Single-use	Nickel (Ni>99%) on stainless steel 316L (1.4404)	ECC1-00-0186-A/X	PAT-Cell-HT, PAT-Cell-Aqu
Reed contact (Au on SS) (10 pcs)			70°C 200°C	Reed contact	Reusable	Gold (Au>99%) on stainless steel 316L (1.4404)	ECC1-00-0186-D/X	PAT-Cell-HT, PAT-Cell-Aqu
Reference ring (Mg) (10 pcs)	Magnesium		70°C 200°C	Reference ring	Single-use	Magnesium (Mg)	ECC1-00-0182-F/X	PAT-Cell-HT, PAT-Cell-Aqu
Reference ring (Li) (10 pcs)	Lithium		70°C 200°C	Reference ring	Single-use	Lithium (Li)	ECC1-00-0182-O/X	PAT-Cell-HT, PAT-Cell-Aqu
Reference ring II (AC on SS) (10 pcs)	Activated carbon		70°C 200°C	Reference ring	Single-use	Activated carbon on stainless steel	ECC1-00-0182-W/X	PAT-Cell-HT	AC 95%, aqueous binder: CMC 3% / SBR 2%
Reference ring (AC) (10 pcs)	Activated carbon		70°C 200°C	Reference ring	Single-use	Activated carbon	ECC1-00-0182-T/X	PAT-Cell-Aqu
Current collector 18 mm, Au (5 pcs)			70°C 200°C	Current collector disc	Reusable	Gold (Au>99%)	ECC1-00-0069-A/V	PAT-Cell-HT, PAT-Cell-Aqu
Current collector 18 mm, Ti (5 pcs)			70°C 200°C	Current collector disc	Reusable	Titanium (Ti >99%, grade 2)	ECC1-00-0069-C/V	PAT-Cell-HT, PAT-Cell-Aqu
Current collector 18 mm, Pt (5 pcs)			70°C 200°C	Current collector disc	Reusable	Platinum (Pt>99%)	ECC1-00-0069-D/V	PAT-Cell-HT, PAT-Cell-Aqu
Current collector 18 mm, Ni (5 pcs)			70°C 200°C	Current collector disc	Reusable	Nickel (Ni>99%)	ECC1-00-0069-F/V	PAT-Cell-HT, PAT-Cell-Aqu
Sealing ring PE (100 pcs)			70°C	Sealing ring	Single-use	Polyethylene (PE)	ECC1-00-0232-A/C	PAT-Cell_only
Sealing ring, Al (washer)(annealed), 10 pcs			70°C 200°C	Sealing ring	Single-use	Aluminum (Al) 3.3315	ECC1-00-0232-G/X	PAT-Cell-HT, PAT-Cell-Aqu, PAT-Cell-Press
Sealing ring PTFE (10 pcs)			70°C 200°C	Sealing ring	Single-use	PTFE	ECC1-00-0232-B/X	PAT-Cell-Aqu, PAT-Cell-HT
Ferrule 1.0 mm (50 pcs)			70°C	Ferrule	Reusable	PTFE	ECC1-00-0029-B/L	ECC-PAT-Core
Ferrule (plug) (50 pcs)			70°C	Ferrule	Reusable	PTFE	ECC1-00-0029-D/L	ECC-PAT-Core
PE Seal (50 pcs)			70°C	Sealing ring	Single-use	Polyethylene (PE)	ECC1-00-0053-A/L	ECC-PAT-Core

Complete Test Setup with PAT-Tester-x and PAT-Heater-4

With the development of our own potentiostats / galvanostats / impedance analyzers, the PAT-Tester series, we are now able to offer you complete setups for your experiments. For tests with the PAT-Cell-HT we recommend the use of our heated docking station, the PAT-Heater-4 in combination with a 4-channel PAT-Tester-x-8. This flexible setup is characterized by its low space consumption and easy handling and allows you to efficiently test your battery materials up to 200°C.

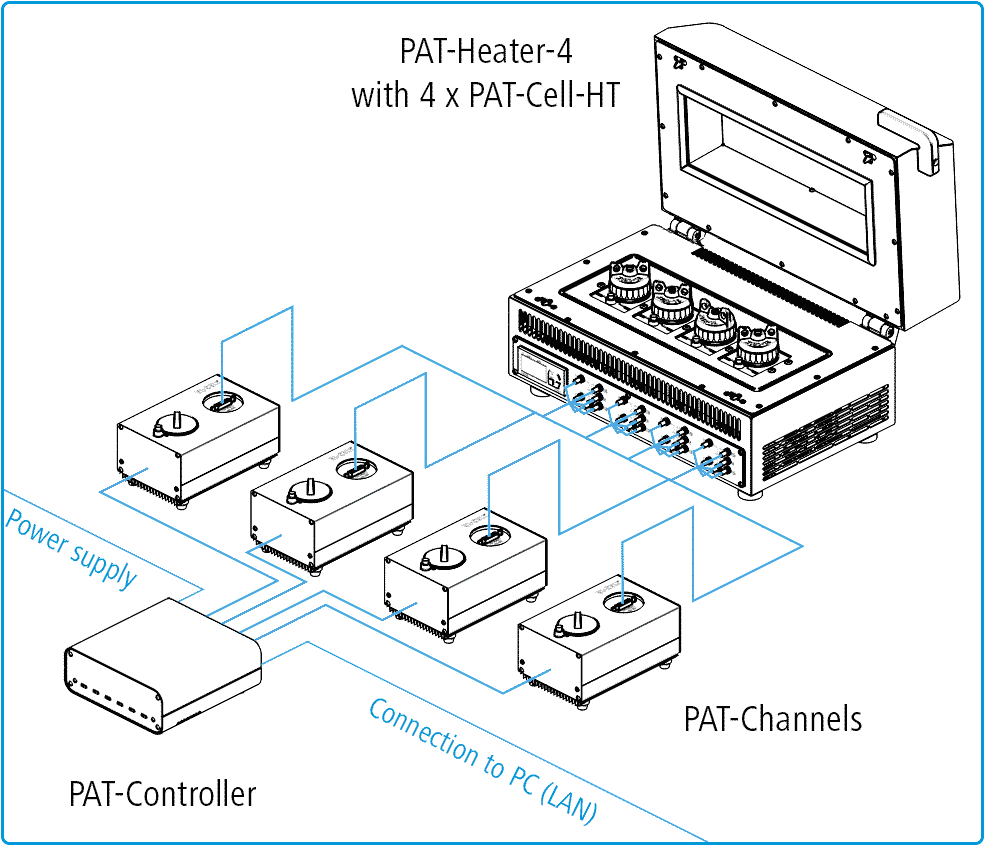

Verbindungsschemata_PAT-Tester-x_PAT-Heater-4

PAT-Tester-x-8

The PAT-Tester-x-8 offers maximum flexibility with up to 8 channels for small scale and special purpose testing.

Product details

PAT-Heater-4

The PAT-Heater-4 is a heated docking station connecting up to 4 PAT-Cell-HT.

Product details

Recommended PAT-Core Configuration

This information can be used as a guide for building test cells of the PAT series. More PAT-Core setups can be found here.

Testing with aprotic high-temperature electrolytes

Component	Item/Material	Order no.
Lower electrode (+)	LCO/NCM/LFP..
Upper electrode (-)	Graphite/LTO
Lower plunger	SS or Al	ECC1-01-0027-C_x* (SS) or ECC1-01-0027-A_x* (Al)
Upper plunger	SS or Cu	ECC1-01-0026-C (SS) or ECC1-01-0026-A (Cu)
Reference	Li metal	ECC1-00-0182-O/X
Reed contact	Ni on SS	ECC1-00-0186-A/X
Separator	GF/A	ECC1-01-0011-A/L
Lid seal	PTFE	ECC1-00-0232-B/X
Sleeve (reusable)	Plain Insulation sleeve PEEK, disassembled	ECC1-00-0510-T
T/°C	<200°C

SS= Stainless steel 316L (1.4404)

PAT-Core with reusable PEEK insulation sleeves and reference electrode

Component	Item/Material	Order no.
Lower electrode (+)	LCO/NCM/LFP..
Upper electrode (-)	Graphite/LTO
Lower plunger	SS or Al	ECC1-01-0027-C_x* (SS) or ECC1-01-0027-A_x* (Al)
Upper plunger	SS or Cu	ECC1-01-0026-C (SS) or ECC1-01-0026-A (Cu)
Reference	Li metal	ECC1-00-0182-O/X
Reed contact	Ni on SS	ECC1-00-0186-A/X
Separator	GF/A	ECC1-01-0011-A/L
Lid seal	PTFE	ECC1-00-0232-B/X
Sleeve (reusable)	Plain Insulation sleeve PEEK, disassembled	ECC1-00-0510-T
T/°C	<200°C

Gallery

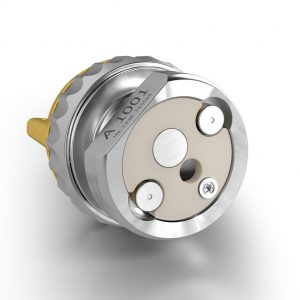

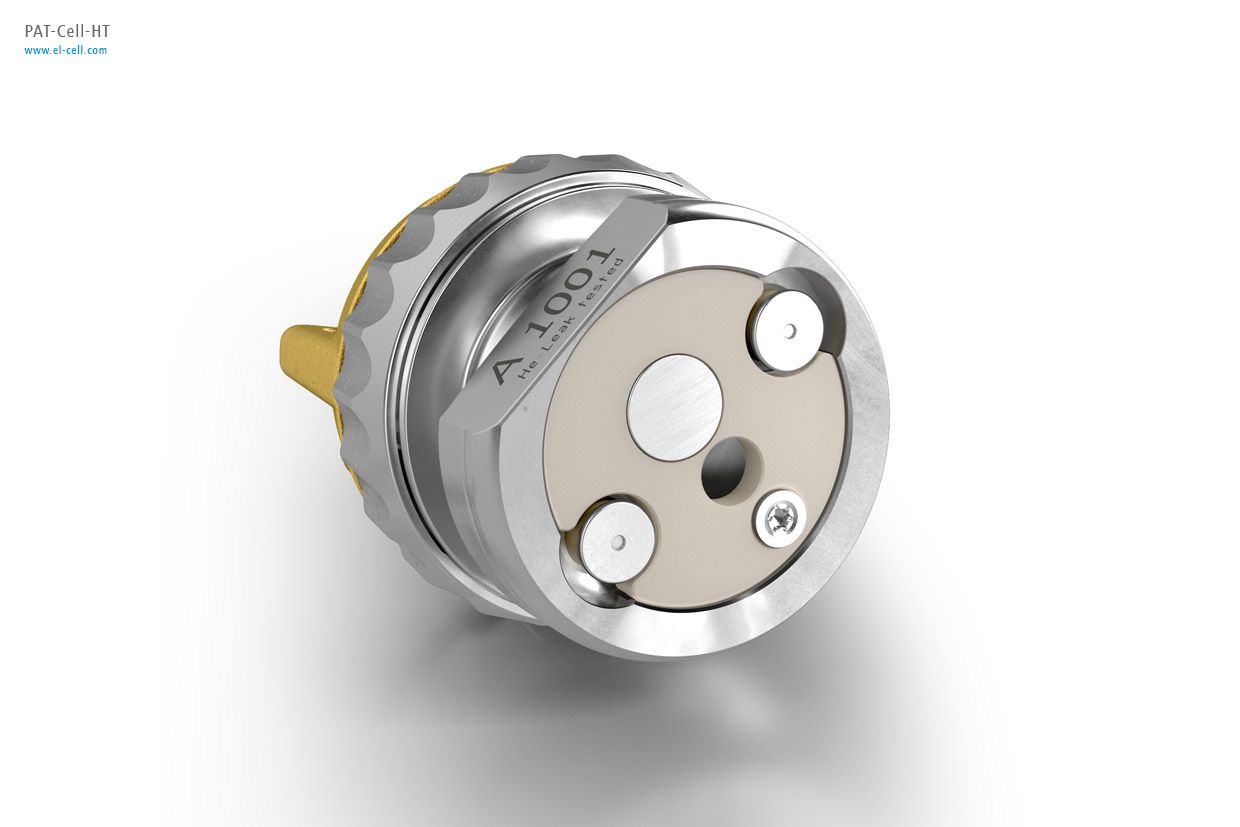

: Heat resistant PEEK cell bottom

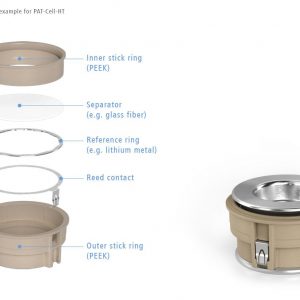

: PAT-Core example configuration for PAT-Cell-HT

: Opened PAT-Heater-4 with test cells

Videos

How to assemble the PEEK insulation sleeves (02/2018)

In this video we will show you how to assemble the PEEK insulation sleeves in a few steps. In contrary to the preassembled single-use insulation sleeve made of PP, the PEEK variant needs to be assembled before each use but has the advantage of reusability.
