ECC-Aqu

Test cell for use with aqueous electrolytes

ECC-Aqu

Test cell for use with aqueous electrolytes

ECC-Aqu

Test cell for use with aqueous electrolytes

ECC-Aqu features

Product description

The ECC-Aqu electrochemical cell is dedicated to the characterization of aqueous battery and capacitor systems. The cell is equipped with a reference electrode assembly. Cell parts that come in contact with the electrolyte are made of gold and PEEK and can thus withstand all common aqueous electrolytes like sulphuric acid (up to 50% concentration) or potassium hydroxide. Other construction materials like platinum are optionally available.

Features

Operation with or without reference electrode

High precision 18 mm diameter sandwich geometry with <0.1 mm electrode concentricity

Reliable low leakage sealing with PE washer

Easy and reliable electrolyte filling during assembly

Fast assembly and dismantling and easy cleaning of cell components

Electrodes are easily accessible for post-mortem analysis

Reusable cell components except for PE seal

Adjustable, reproducible and homogeneous mechanical pressure on electrodes

Specifications

Manual

ECC-Aqu User Manual
Release 2.6
Type PDF
Size 1.0 MB
Download

Consumables

Sealing ring, PE ECC1-00-053-A
Sealing ring, PTFE ECC1-00-0053-B
Sealing ring, PEEK ECB3-00-0053-D
Glass fiber separator 18 mm x 1.55 mm ECC1-01-0012-C
Ferrule 1.0, (50 pcs) ECC1-00-0029-B/L
Ferrule (plug), (50 pcs) ECC1-00-0029-D/L

Heat Resistance Set (ECC series)

The Heat Resistance Set increases the temperature range for testing with the ECC-Aqu to 150 °C.

Package content
Heat Resistance Set (ECC-Series) ECC1-01-0040-A
ECC-Series Cell Cable Set HT ECE-00-0037-B
HT Foot (heat resistant), (3 pcs) ECC1-00-0065-B
PTFE Seal (ECC Series), (10 pcs) ECC1-00-0053-B/X

Spare parts

Test cell

Reference electrode ECC (Au)

ECC-Aqu features

Product description

The ECC-Aqu electrochemical cell is dedicated to the characterization of aqueous battery and capacitor systems. The cell is equipped with a reference electrode assembly. Cell parts that come in contact with the electrolyte are made of gold and PEEK and can thus withstand all common aqueous electrolytes like sulphuric acid (up to 50% concentration) or potassium hydroxide. Other construction materials like platinum are optionally available.

Features

Operation with or without reference electrode

High precision 18 mm diameter sandwich geometry with <0.1 mm electrode concentricity

Reliable low leakage sealing with PE washer

Easy and reliable electrolyte filling during assembly

Fast assembly and dismantling and easy cleaning of cell components

Electrodes are easily accessible for post-mortem analysis

Reusable cell components except for PE seal

Adjustable, reproducible and homogeneous mechanical pressure on electrodes

Specifications

Manual

ECC-Aqu User Manual
Release 2.6
Type PDF
Size 1.0 MB
Download

Consumables

Sealing ring, PE ECC1-00-0053-A
Sealing ring, PTFE ECC1-00-0053-B
Sealing ring, PEEK ECB3-00-0053-D
Glass fiber separator 18 mm x 1.55 mm ECC1-01-0012-C
Separator (Celgard 2325) 24 mm x 0.025 mm ECC1-01-0022-D
Ferrule (plug) ECC1-00-0029-D

Heat Resistance Set (ECC series)

The Heat Resistance Set increases the temperature range for testing with the ECC-Aqu to 150 °C.

Package content
Heat Resistance Set (ECC-Series) ECC1-01-0040-A
ECC-Series Cell Cable Set HT ECE-00-0037-B
HT Foot (heat resistant), (3 pcs) ECC1-00-0065-B
PTFE Seal (ECC Series), (10 pcs) ECC1-00-0053-B/X

Spare parts

Test cell

Reference electrode ECC (Au)

The ECC-Aqu electrochemical cell is dedicated to the characterization of aqueous battery and capacitor systems. The cell is equipped with a reference electrode assembly. Cell parts that come in contact with the electrolyte are made of gold and PEEK and can thus withstand all common aqueous electrolytes like sulphuric acid (up to 50% concentration) or potassium hydroxide. Other construction materials like platinum are optionally available.

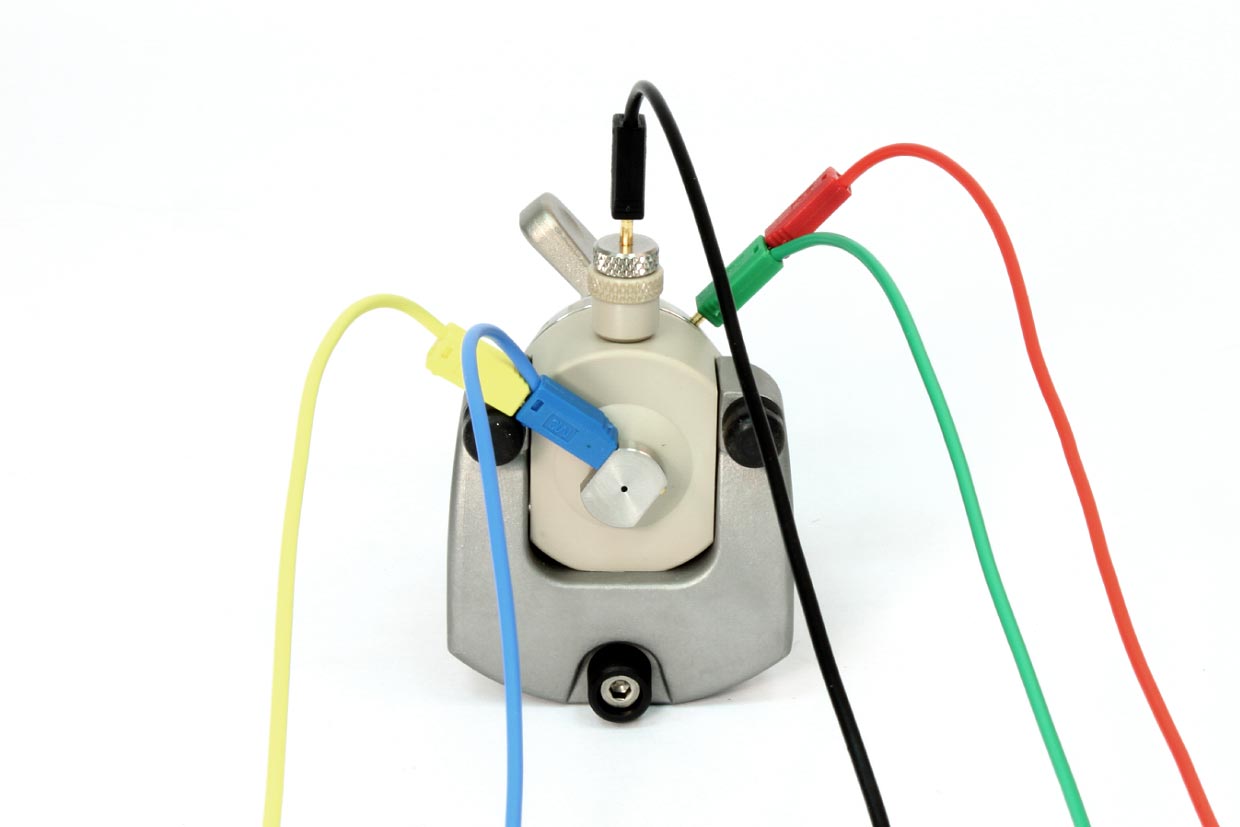

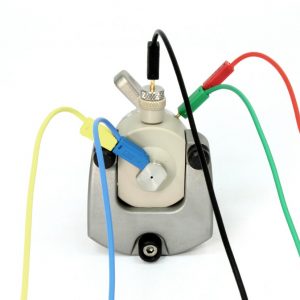

ECC-Aqu overview

Features

Operation with or without reference electrode

High precision 18 mm diameter sandwich geometry with

Reliable low leakage sealing with PE washer

Easy and reliable electrolyte filling during assembly

Fast assembly and dismantling and easy cleaning of cell components

Electrodes are easily accessible for post-mortem analysis

Reusable cell components except for PE seal

Adjustable, reproducible and homogeneous mechanical pressure on electrodes

Specifications
Manual
ECC-Aqu User Manual
Release 2.6
Type PDF
Size 1.0 MB
Download
Consumables
Sealing ring, PE ECC1-00-0053-A
Sealing ring, PTFE ECC1-00-0053-B
Sealing ring, PEEK ECB3-00-0053-D
Glass fiber separator 18 mm x 1.55 mm ECC1-01-0012-C
Separator (Celgard 2325) 24 mm x 0.025 mm ECC1-01-0022-D
Ferrule (plug) ECC1-00-0029-D
Heat Resistance Set

The Heat Resistance Set increases the temperature range for testing with the ECC-Aqu to 150 °C.

Package content
Heat Resistance Set (ECC-Series) ECC1-01-0040-A
ECC-Series Cell Cable Set HT ECE-00-0037-B
HT Foot (heat resistant), (3 pcs) ECC1-00-0065-B
PTFE Seal (ECC Series), (10 pcs) ECC1-00-0053-B/X
Spare parts

Test cell

Reference electrode ECC (Au)

Gallery

Related products

ECC-RefLoad

Ref loading tool – Useful tool for conveniently loading the Ref-sleeve

Product details

EL-Cut

High precision cutting pliers to eliminate torn and chipped electrode edges. Recommended diameter size for use with the ECC-Aqu is 18 mm.

Product details

Related products

PAT-Cell-Aqu

The PAT series test cell for two- and three-electrode testing with aqueous electrolytes

Product details

PAT-Cell-Press-Aqu

Pressure test cell for aqueous electrolytes and non-lithium battery systems

Product details
